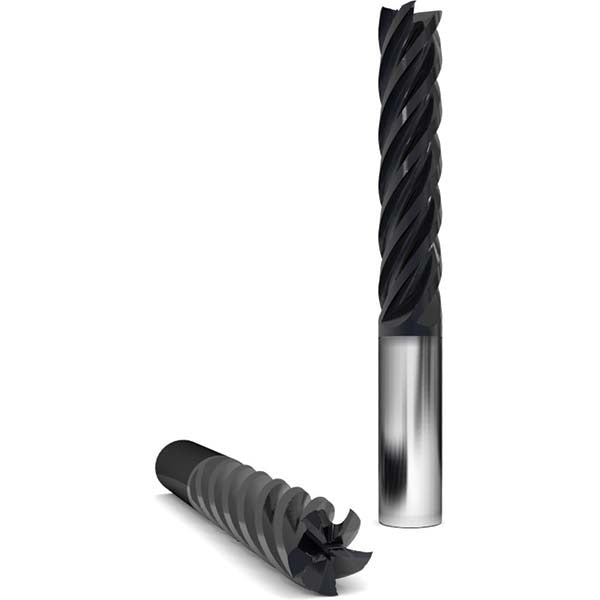

Gws 311446 Square End Mill 1/4 Inch 5 Flute Solid Carbide

Product Description

The GWS 311446 is a 5-flute, solid carbide square end mill designed for high-performance milling in ferrous and non-ferrous materials. It carries an AlCrO-MAX finish, which improves heat resistance and extends tool life in demanding cutting conditions. The 1/4 inch diameter, 1 inch length of cut, and 3 inch overall length make this a compact, versatile tool suited to profiling, slotting, and contouring operations. The 38-degree helix angle and upcut flute geometry promote efficient chip evacuation, while centercutting capability allows direct plunge entry without a pre-drilled pilot hole.

This end mill is intended for use on CNC machining centers, knee mills, and manual milling machines in tool and die shops, production machining environments, and maintenance machine shops. The right-hand cut and right-hand flute configuration is standard for conventional spindle operation. A 1/4 inch shank diameter fits standard collets and end mill holders. Series 2205 positions this tool for applications where surface finish quality and extended tool life are priorities.

Key Features

• 5-flute design increases feed rates and improves surface finish compared to 4-flute geometry
• AlCrO-MAX coating provides elevated heat and oxidation resistance for dry and semi-dry cutting
• 38-degree helix angle with upcut flute promotes positive chip evacuation in deep pockets and slots
• Centercutting geometry allows plunge milling without pre-drilling
• Solid carbide construction delivers rigidity and wear resistance in hard materials
• Square shank, standard length configuration for direct collet or end mill holder mounting

Compatibility

Designed as an OEM-style cutting tool for use in standard 1/4 inch collets, ER collet chucks, and end mill holders on CNC and manual milling equipment.

Installation Notes

Installation is performed by machinists and CNC operators. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully in the collet or holder and torque the drawbar or collet nut to machine manufacturer specifications. Verify runout with a dial indicator before initiating a cut, as excessive runout accelerates wear on carbide end mills.
