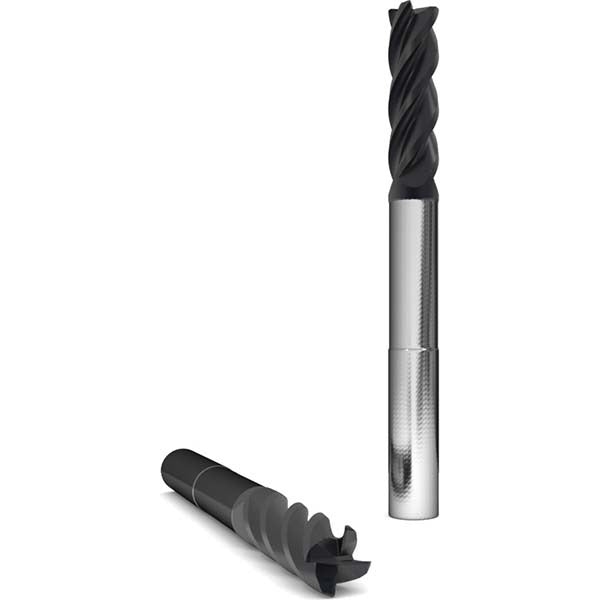

Gws 310997 Square End Mill 3/4 in 4 Flute Solid Carbide

Product Description

The GWS 310997 is a solid carbide square end mill engineered for high-performance milling applications in ferrous and non-ferrous materials. It features a 3/4 inch mill diameter, a 1 inch length of cut, and a 4-flute right-hand cutting geometry with a 38-degree helix angle. The AlCrO-MAX coating provides enhanced thermal resistance and tool life in demanding cutting environments. Machined from submicron carbide grade stock and finished as a single-end tool, this end mill suits production-level milling on CNC machining centers and manual knee mills alike. It is installed and operated by machinists and tool and die professionals.

This end mill is suited for slot milling, profile milling, and peripheral milling operations in shop environments requiring consistent finish and tool longevity. The extended reach configuration and right-hand flute direction allow access to deeper features without tool interference. The 38-degree variable helix promotes chip evacuation and reduces chatter in both roughing and finishing passes. Applications range from prototype machining to production runs on ferrous alloys, stainless, and hardened steels where coated carbide tooling is specified.

Key Features

• 3/4 inch mill diameter with matching 3/4 inch square shank for direct collet or end mill holder mounting
• 4-flute, right-hand cut, right-hand flute geometry for standard CNC and manual milling operations
• 38-degree helix angle promotes efficient chip evacuation and reduced vibration
• AlCrO-MAX coating delivers high-temperature oxidation resistance for extended tool life
• Submicron carbide grade provides superior hardness and edge retention
• Center cutting design allows plunge entry without pre-drilled pilot holes

Compatibility

Designed as a direct-fit replacement or new-installation tool for standard end mill holders, collet chucks, and ER collet systems accepting a 3/4 inch shank diameter. Part of GWS Series 2105.

Installation Notes

This tooling is installed and changed by machinists following shop-floor lockout/tagout procedures before any spindle access. Secure the shank fully within the holder to the manufacturer-specified minimum engagement depth to prevent pullout. Verify spindle RPM and feed rate settings against the material and coating specifications before initiating a cut. Do not use damaged or worn tool holders, as runout directly reduces tool life and surface finish quality.
