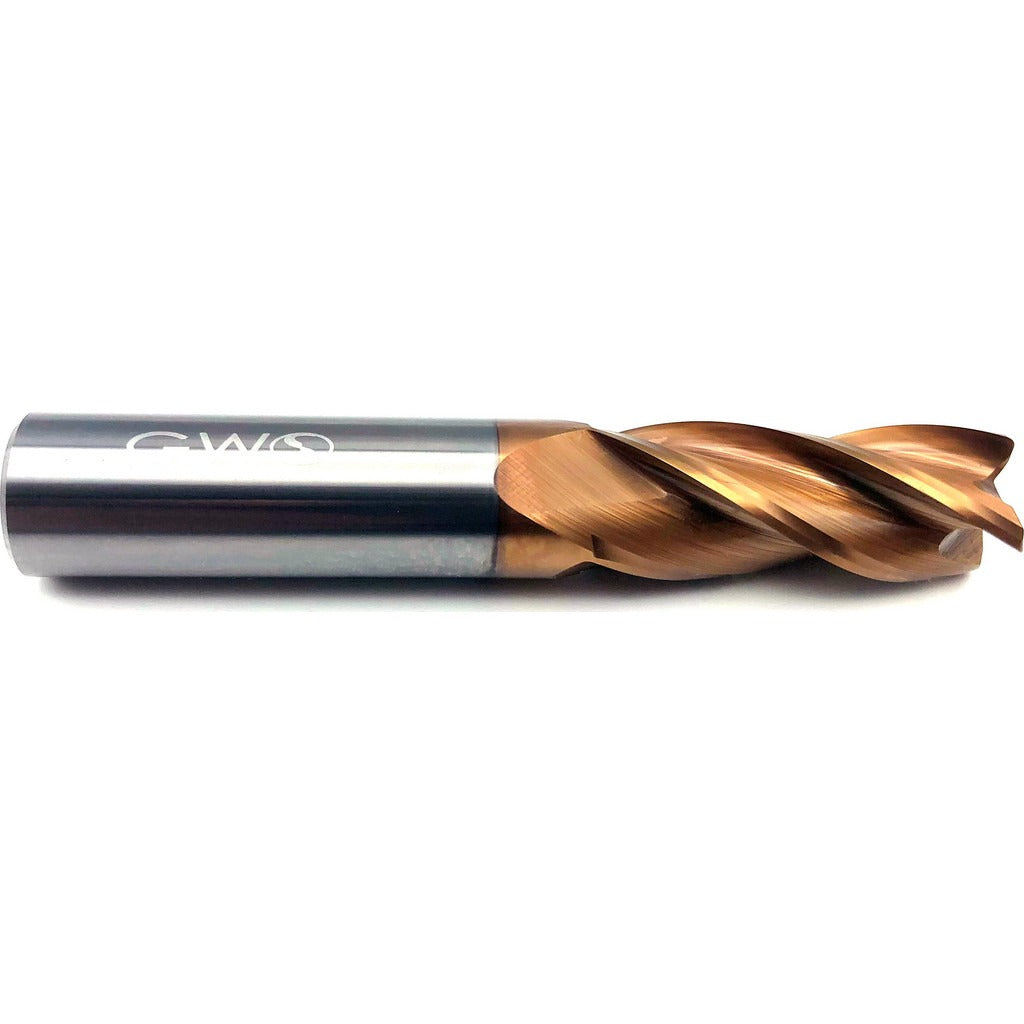

Gws 1034022 Corner Radius End Mill 5/16 in 4 Flute Carbide

Product Description

The GWS 1034022 is a solid carbide corner radius end mill designed for precision milling in demanding metalworking applications. It features a 5/16 inch (0.3125 inch) diameter with a 0.015 inch corner radius that reduces edge chipping and stress concentration at the cutting corner. The 4-flute, single-end configuration with a variable helix and variable index geometry supports both roughing and finishing passes in a single tool. The FX7 coating provides thermal and wear resistance for extended tool life in high-demand cutting environments. Licensed machinists and CNC operators are the primary users of this end mill.

This end mill is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. With a 1/2 inch length of cut and 2 inch overall length, it fits short-reach applications where rigidity is critical. The right-hand flute direction and right-hand cutting direction make it compatible with standard CNC machining centers and manual mills. The straight-cylindrical shank with h6 tolerance mounts securely in standard end mill holders.

Key Features

• 0.015 inch corner radius reduces stress concentration and extends edge life compared to square end mills
• Variable helix and variable index geometry reduce harmonics and chatter during cutting
• FX7 coating provides wear and heat resistance for steel, stainless steel, and hard materials
• Centercutting design allows plunge milling operations
• Submicron carbide grade substrate for toughness in interrupted cuts and superalloys
• Short flute length (1/2 inch LOC) maximizes rigidity in tight setups

Compatibility

Designed for use with standard end mill holders. Compatible with primary workpiece materials including steel, stainless steel, and cast iron (ISO material codes P, M, K), and secondary materials including non-ferrous metals, superalloys and titanium, and hard materials (ISO codes N, S, H).

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the tool changer or spindle lock is engaged before mounting or removing the end mill. Seat the straight-cylindrical shank fully into the end mill holder and torque the retention mechanism per the holder manufacturer specifications. Confirm runout with a dial indicator before beginning production cuts.
