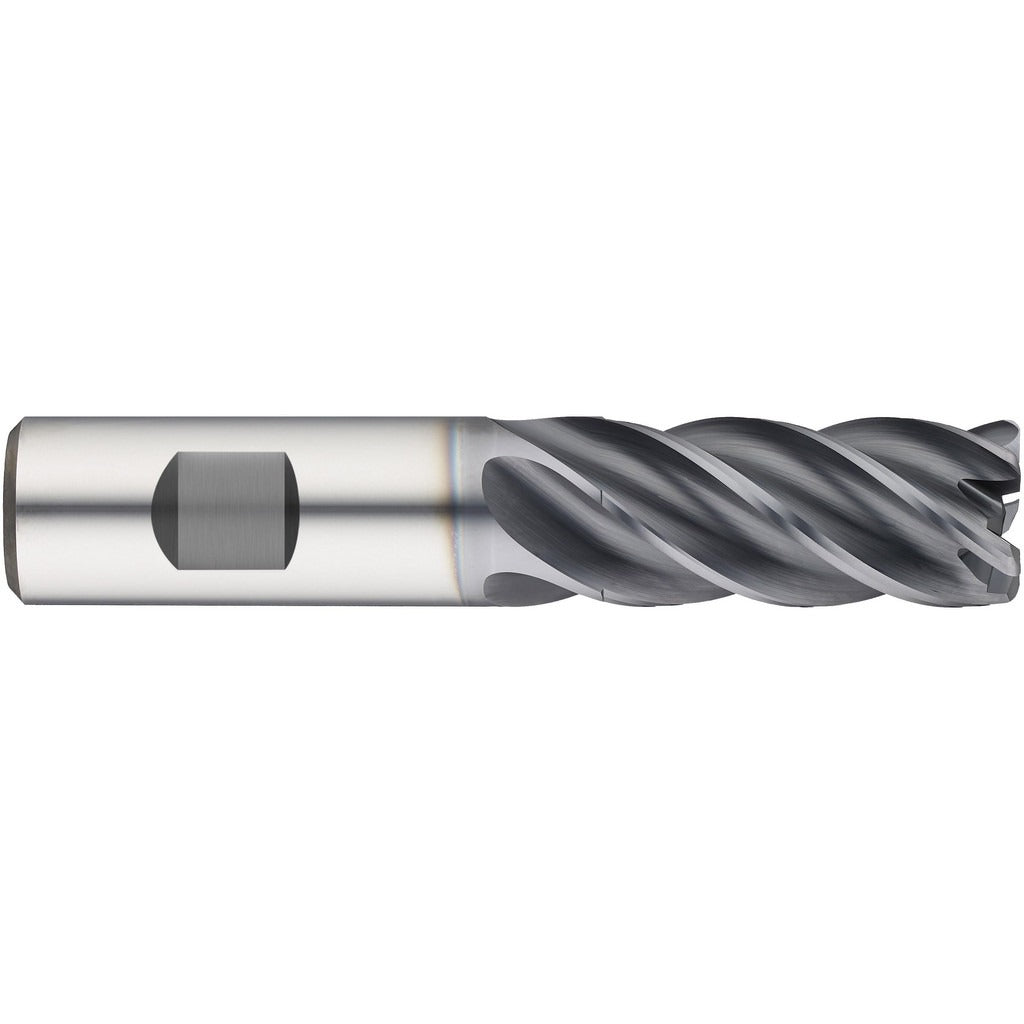

Guhring 9069860127060 Corner Radius End Mill 5 Flute

Product Description

The GUHRING 9069860127060 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining environments. With a 0.5-inch mill diameter, 5 helical flutes, and a 0.06-inch corner radius, it delivers smooth cutting action and extended tool life across both roughing and finishing operations. The nano-A coating reduces friction and resists heat buildup, making it well-suited for ferrous and difficult-to-machine materials. This is a single-end tool with a Weldon flat shank and a right-hand cutting direction. It is sized for use with standard end mill holders in CNC and manual milling setups.

This end mill is built for machinists working with steel, stainless steel, cast iron, superalloys, titanium, non-ferrous metals, and hard materials. The 5-flute configuration combined with a medium-high helix and normal pitch makes it effective for both pocketing and profiling operations. At 3 inches overall length with a 1-inch length of cut, it fits a wide range of standard machining center setups in production and job-shop environments alike.

Key Features

• Solid carbide construction for rigidity and long tool life in hard and abrasive materials
• nano-A coating for reduced friction and improved wear resistance on ferrous and exotic alloys
• 0.06-inch corner radius reduces stress concentration and extends part edge life
• 5 helical flutes with normal pitch support both roughing and finishing in a single tool
• Weldon flat shank provides positive drive and secure clamping in end mill holders
• Right-hand flute direction and right-hand cutting for standard CNC spindle compatibility

Compatibility

Designed for use with end mill holders. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, non-ferrous metals, and hard materials. Part of GUHRING Series 6986.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Secure the Weldon flat shank in a compatible end mill holder to the recommended clamping torque specified by the holder manufacturer. Verify runout with a dial indicator before beginning a production cut.
