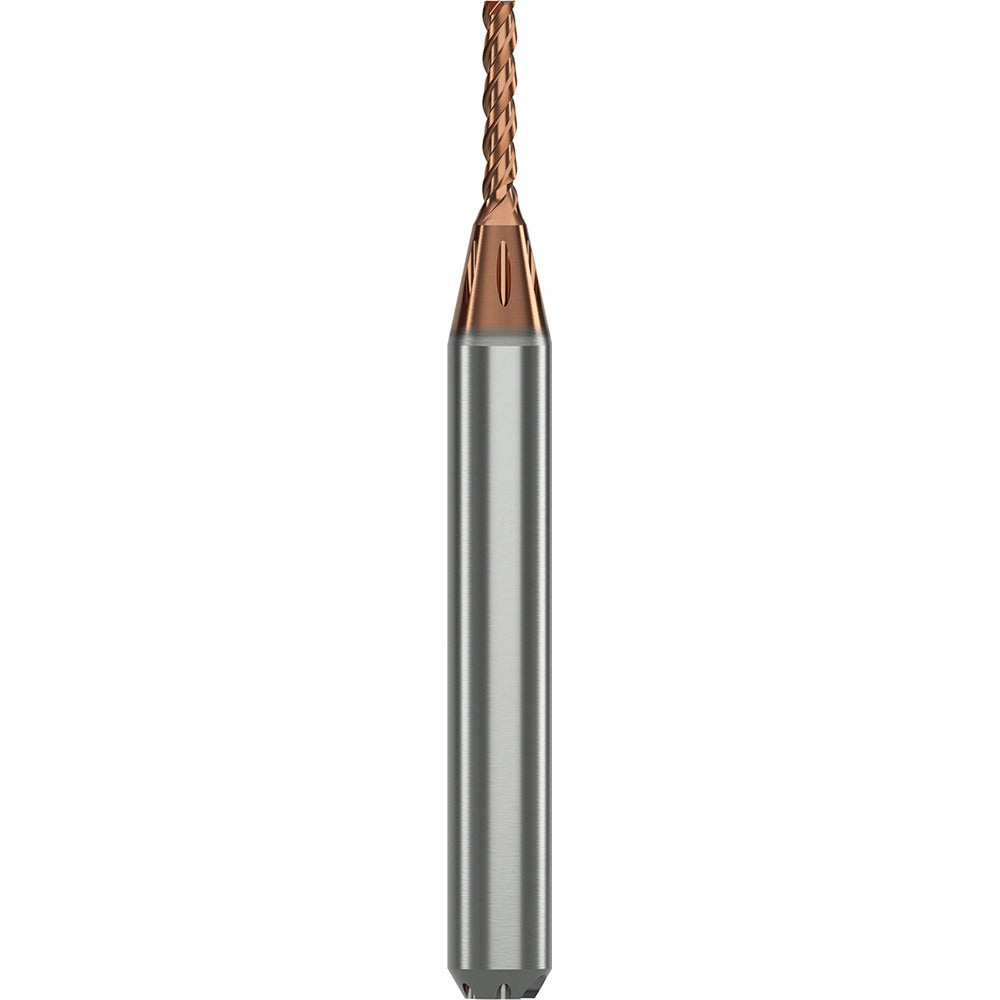

Guhring 9068090031750 Corner Radius End Mill 1/8 in

Product Description

The GUHRING 9068090031750 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining environments. Built from ultra fine grain carbide and coated with Guhring Durox finish, this tool delivers exceptional wear resistance and edge retention. It features a 1/8 inch (3.17 mm) cutting diameter, three flutes with a high helix configuration, and a 2.25 inch overall length. The single-end, center-cutting design supports both plunge and peripheral cuts. With a coarse pitch and right-hand flute direction, it is suited for roughing and finishing operations across a range of workpiece materials. Machinists and CNC operators working in job shops and production environments are the primary users of this tool.

This end mill is engineered for use on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, with secondary capability on hard materials. The extra-long flute type and 15.87 mm length of cut make it appropriate for deeper pocket milling and slot work where reach is a factor. The straight-cylindrical, 6 mm shank is compatible with standard end mill holders. Coolant-through capability supports chip evacuation and heat management during continuous cuts in tight geometries or difficult alloys.

Key Features

• Solid carbide construction with ultra fine grain material grade for improved edge life
• Durox coating provides enhanced hardness and thermal resistance during cutting
• Center-cutting design allows direct plunge entry without a pre-drilled hole
• Coolant-through construction supports chip evacuation and thermal control
• High helix, coarse pitch geometry suitable for both roughing and finishing passes
• Right-hand cutting and flute direction with variable index and variable helix set to standard configuration

Compatibility

Designed for use with standard end mill holders. Straight-cylindrical shank with 6 mm diameter and h5 shank diameter tolerance. Mill diameter tolerance is h8. Part of Guhring Series 6809.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the end mill holder and tighten to the holder manufacturer specification. Verify runout with a dial indicator before production cutting, as carbide tools are sensitive to improper seating and can fracture under off-center loads.
