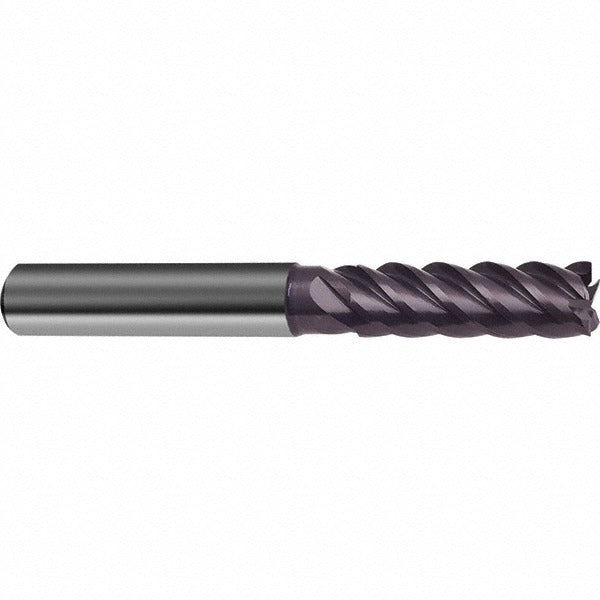

Guhring 9067760127000 Square End Mill 5-flute 45 Deg

Product Description

The GUHRING 9067760127000 is a 5-flute, single-end square end mill designed for both roughing and finishing operations in a single tool. It features a 45-degree helix angle and a Nano-A coating, making it well-suited for high-efficiency milling on ferrous and non-ferrous materials. The 0.5-inch cutting diameter pairs with a 1.25-inch length of cut and a 3.5-inch overall length, offering a regular-length profile that fits standard tool holders. Machinists and CNC operators use this end mill when cycle time matters and tool changes need to be minimized. It belongs to GUHRING Series 6776.

This end mill is appropriate for milling centers and manual knee mills running ferrous alloys, stainless steels, and hardened materials where a single tool must handle both stock removal and finish passes. The right-hand cutting direction and right-hand flute spiral suit conventional vertical and horizontal machining center spindles. The 0.5-inch shank diameter fits ER collet chucks, Weldon-style holders, and hydraulic chucks commonly found in production and job-shop environments. It is a regular-length tool, so it works in setups where clearance is not a limiting factor.

Key Features

• 5-flute geometry supports both roughing and finishing in a single pass
• 45-degree helix angle promotes smooth chip evacuation and reduced cutting forces
• Nano-A finish coating extends tool life in demanding materials
• Square end profile for shoulder milling, slotting, and profiling
• Single-end, right-hand cut with right-hand flute direction
• Regular length profile fits standard toolholding without extended-reach concerns

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for CNC machining centers and manual mills accepting a 0.5-inch shank diameter end mill in ER collet, Weldon, or hydraulic toolholding systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank to the full recommended engagement depth in the holder and torque the collet nut or set screw per the toolholder manufacturer specifications. Inspect the cutting edges and coating for damage before running the tool at programmed speeds and feeds.
