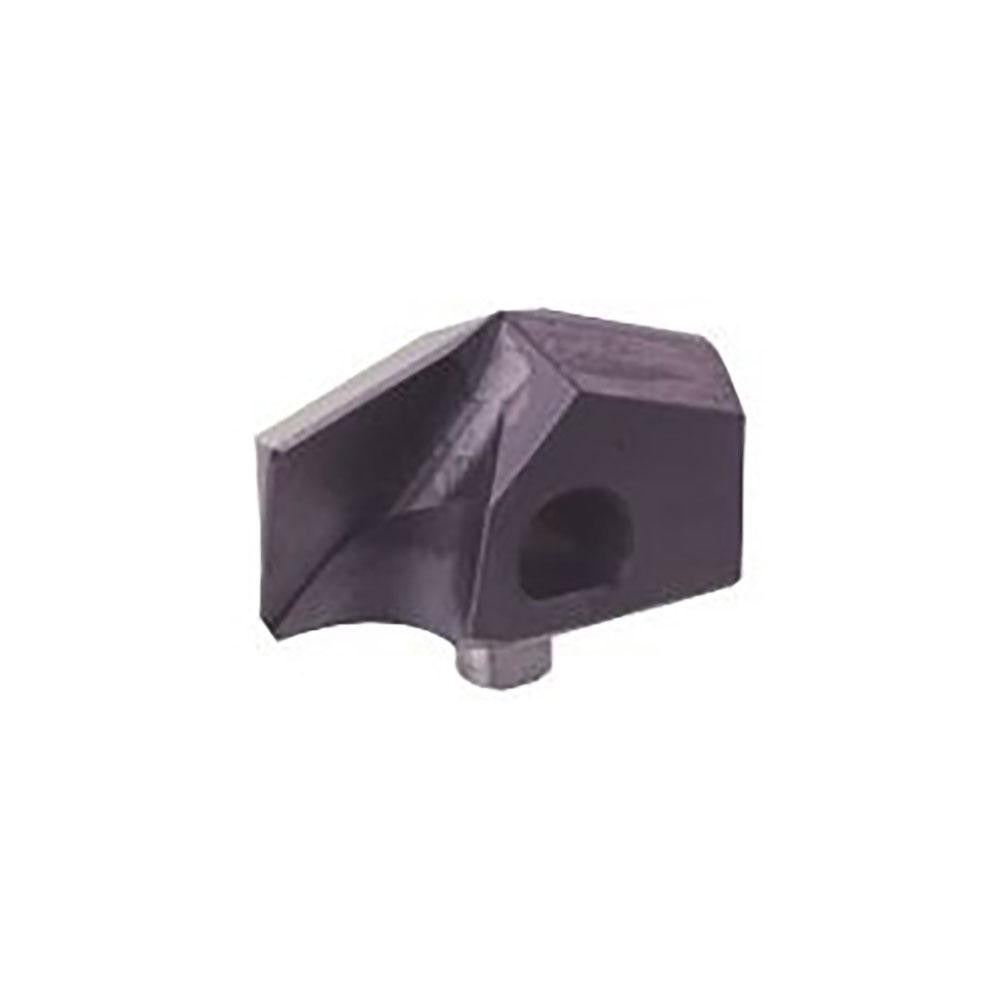

Guhring 9041120160000 Replaceable Tip Drill 16mm Carbide

Product Description

The GUHRING 9041120160000 is a 16mm replaceable tip drill from the Series 4112 platform, designed for high-productivity hole-making in steel and stainless steel applications. The drill body accepts an HT800 solid carbide tip with a 140-degree included angle and a 2-facet insert geometry, engineered to reduce thrust force and improve chip evacuation. The tip carries a Nano-FIREX coating applied via PVD process, which provides thermal resistance and wear protection during demanding cutting cycles. With a functional length of 11.00mm, this tool is sized for shallow-to-moderate depth drilling operations where tip change-out speed matters.

This tool is suited for machining environments where rapid tip replacement minimizes downtime on CNC machining centers or drill presses. It targets steel workpieces classified under ISO material group P and stainless steel under group K and M. The replaceable tip design eliminates the need to replace the full drill body when the cutting edge wears, making it a cost-effective choice for production shops running high volumes of holes in ferrous and stainless materials. Coolant-through capability is not included on this configuration.

Key Features

• HT800 solid carbide replaceable tip for extended edge life in steel and stainless steel
• Nano-FIREX PVD coating provides thermal and abrasion resistance
• 140-degree point angle with 2-facet geometry reduces entry thrust and improves centering
• Series 4112 platform allows tip swap without removing the drill body from the spindle
• Manufacturer grade K/P designates compatibility with ISO P and K/M workpiece material groups
• Insert seat size 160 matches the 16mm nominal drill diameter

Compatibility

Designed as an OEM-style replaceable tip for GUHRING Series 4112 drill bodies with an insert seat size of 160, intended for use with steel and stainless steel workpiece materials classified under ISO groups P, K, and M.

Installation Notes

Tip installation and replacement should be performed by a qualified machinist or toolroom technician following the drill body manufacturer's torque and seating procedures. Ensure the spindle is fully stopped and the machine is in a safe state before handling or changing the replaceable tip. Inspect the insert seat for debris or damage before seating the new tip to ensure proper engagement and runout performance. Follow shop safety protocols and applicable OSHA machine guarding requirements when servicing cutting tools.
