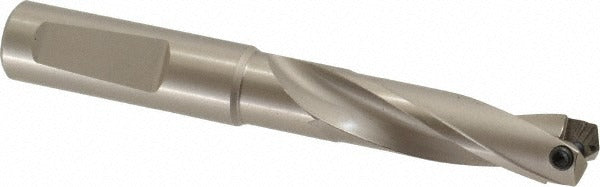

Guhring 9041070145050 Replaceable-tip Drill 5/8in Shank

Product Description

The GUHRING 9041070145050 is a replaceable-tip drill designed for precision hole-making in metal fabrication and machining applications. It accepts HT 800 WP inserts and supports through-coolant delivery, keeping the cutting zone clear and extending insert life during deep-hole operations. The drill covers a diameter range of 0.571 to 0.59 inches and reaches a maximum depth of 47.8 mm (1.88 inches). The 5/8-inch shank provides secure tool holding in standard CNC and manual spindle setups. Machinists and tooling technicians working in production environments will find this body a reliable platform for high-output drilling cycles.

This drill body is suited for production drilling on CNC machining centers, drill presses, and turning centers where consistent hole quality and fast insert changes are required. The through-coolant design makes it particularly effective in ferrous and non-ferrous materials where chip evacuation is critical. With a flute length of 70 mm (2.76 inches) and a depth range of 1.5 to 2.5 inches, it handles mid-range depth requirements common in automotive, aerospace, and general metalworking shops. The replaceable-tip system reduces tooling cost by allowing insert swaps without discarding the full drill body.

Key Features

• Replaceable-tip design using HT 800 WP inserts for fast changeovers without scrapping the body
• Through-coolant capability improves chip evacuation and extends insert life in deep-hole drilling
• Diameter range of 0.571 to 0.59 inches supports close-tolerance bore applications
• 5/8-inch shank diameter fits standard toolholders on CNC and manual spindles
• Flute length of 70 mm (2.76 inches) accommodates depths up to 47.8 mm (1.88 inches)
• Series 4107 construction built for high-cycle production environments

Compatibility

Compatible with HT 800 WP replaceable-tip inserts. Designed as an OEM-style drill body for use in standard 5/8-inch toolholders on CNC machining centers and drill presses requiring through-coolant capability.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and power is locked out before inserting or removing the drill body or inserts. Confirm the coolant supply line is connected and pressure-tested before beginning through-coolant drilling operations. Follow the insert manufacturer torque and seating specifications when securing the HT 800 WP tip.
