Guhring 9041070135050 Replaceable-tip Drill 5/8in Shank

Product Description

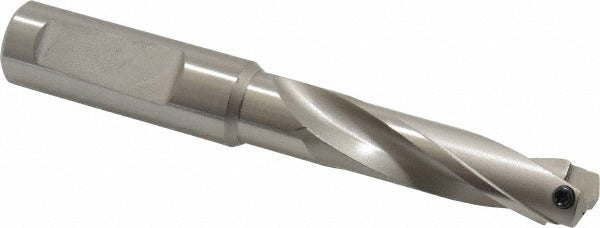

The GUHRING 9041070135050 is a replaceable-tip drill body designed for precision hole-making in metalworking and machining operations. It accepts HT 800 WP insert tips and features through-coolant delivery, which directs coolant directly to the cutting zone to manage heat and evacuate chips during deep drilling cycles. The shank diameter is 5/8 inches (15.88 mm), and the drill covers a diameter range of 0.531 to 0.551 inches. Maximum drill depth reaches 44.6 mm (1.756 inches). This tool is installed and used by machinists, toolroom technicians, and CNC operators in production and job-shop environments.

This drill body is suited for use in CNC machining centers, drill presses, and turning centers equipped with coolant-through spindles. The replaceable-tip design reduces tooling cost per hole by allowing the operator to swap worn or damaged insert tips without discarding the shank body. It is appropriate for drilling steel, cast iron, aluminum, and similar machinable materials where consistent diameter control within the 0.531 to 0.551 inch range is required. The Series 4107 platform is a production-grade system intended for repeat-cycle applications.

Key Features

• Through-coolant delivery for effective chip evacuation and heat control at depth
• Replaceable HT 800 WP insert tips reduce tooling cost and downtime
• Diameter range of 0.531 to 0.551 inches for tight-tolerance bore applications
• Maximum drill depth of 44.6 mm (1.756 inches) within the 40 to 60 mm depth range class
• 5/8 inch shank diameter for broad compatibility with standard toolholders
• Flute length of 66 mm (2.598 inches) supports chip flow across the full depth range

Compatibility

Compatible with HT 800 WP replaceable insert tips. Designed for use in machine spindles and toolholders accepting a 5/8 inch shank. Part of the GUHRING Series 4107 replaceable-tip drill platform.

Installation Notes

Installation and tool changes should be performed by qualified machinists or CNC toolroom personnel with the machine powered down and the spindle locked. Ensure the toolholder collet or chuck is rated for the 5/8 inch shank before clamping. When connecting through-coolant, verify the machine spindle and toolholder are rated for coolant-through operation and that coolant lines are clear before running. Follow the insert manufacturer torque and seating guidelines when mounting HT 800 WP tips to the body.
