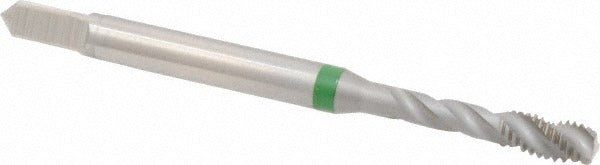

Guhring 9039180040000 Spiral Flute Tap M4 X 0.70 Cobalt

Product Description

The GUHRING 9039180040000 is a spiral flute tap designed for cutting internal metric coarse threads in blind holes. Built from cobalt high-speed steel with a bright/uncoated finish, this tap handles M4 x 0.70 threading with a 40-degree helix angle that efficiently evacuates chips upward out of the hole. The modified bottoming chamfer allows threading closer to the bottom of blind bores than a standard plug tap. It carries a 6H class of fit and D3/D4 thread limit, producing threads that meet standard metric tolerance requirements. Machinists and tool-and-die professionals rely on this tap for precision threading in steel components.

This tap is suited for blind hole threading in alloyed steel and unalloyed steel workpieces. The 3-flute fast flute style combined with the 40-degree right-hand helix provides positive chip flow in short-chipping and medium-chipping ferrous materials. It is well matched to CNC machining centers, drill presses, and tapping machines where consistent thread quality is required across production runs. The right-hand thread direction is standard for the vast majority of metric fastener applications.

Key Features

• M4 x 0.70 metric coarse thread form with 6H class of fit and D3/D4 thread limit
• Modified bottoming chamfer for threading near the bottom of blind holes
• 40-degree right-hand helix angle for efficient upward chip evacuation in blind bores
• Cobalt HSS construction for increased heat and wear resistance in steel applications
• Bright/uncoated finish suitable for use with standard cutting fluids
• Right-hand flute and right-hand thread; no coolant-through requirement

Compatibility

Designed for blind hole threading in alloyed steel and unalloyed steel. Compatible with standard machine tool chucks and quick-change tapping heads accepting a 0.168-inch shank diameter. Part of the Guhring Series 3918.

Installation Notes

This tap should be installed by a qualified machinist following standard tapping procedures for the machine tool in use. Ensure the workpiece is securely fixtured and the spindle is properly aligned before engaging the tap. Use an appropriate cutting fluid or tapping compound for steel to reduce friction and extend tool life. Never reverse the tap at high speed without confirming the machine is set for a synchronized tapping cycle.
