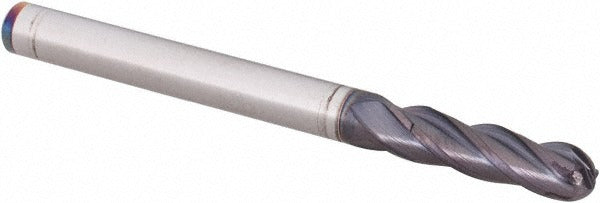

Guhring 9031650031700 Ball End Mill 0.125 in 4 Flute Carbide

Product Description

The GUHRING 9031650031700 is a solid carbide ball end mill designed for precision milling operations in metal, composites, and hard materials. With a 0.125 inch cutting diameter and four spiral flutes in a right-hand configuration, it delivers clean, efficient material removal in profiling, slotting, and contouring applications. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. A FIREX coating provides enhanced heat resistance and wear protection, extending tool life in demanding cutting conditions. Machinists and tool-and-die professionals rely on this geometry for fine detail work requiring tight tolerances.

This end mill suits single-end milling operations in machining centers, CNC mills, and manual knee mills. The 0.125 inch shank diameter fits standard ER collet chucks and precision end mill holders commonly found in job shops and production environments. With a 0.375 inch length of cut and 1.5 inch overall length, it is well suited for shallow-to-medium depth profiling passes in steel, stainless, aluminum, and similar workpiece materials. The regular-length designation makes it a standard go-to choice for general-purpose ball-nose work at this diameter.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard material applications
• FIREX coating provides thermal and abrasion resistance for extended tool life
• 4-flute spiral geometry with 30-degree helix angle for smooth chip flow and reduced vibration
• Right-hand cut and right-hand flute direction for use on standard spindle configurations
• Single-end design with 0.375 inch length of cut and 1.5 inch overall length
• 0.125 inch shank diameter fits standard collet and end mill holder tooling

Compatibility

Designed as a standard replacement or stocking ball end mill for CNC machining centers and manual mills accepting a 0.125 inch shank diameter in a right-hand spindle configuration.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully in a clean, properly sized collet or end mill holder and torque the retention nut to the tool holder manufacturer specification. Inspect the cutting edges and coating for damage before each use. Ensure the spindle is fully stopped and the machine is placed in a safe state before changing tooling.
