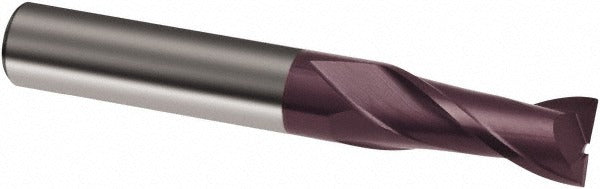

Guhring 9031480091300 Square End Mill Solid Carbide

Product Description

The GUHRING 9031480091300 is a solid carbide square end mill designed for precision milling operations in metal cutting and machining applications. This single-end tool features a 0.3594 inch cutting diameter, a 1 inch length of cut, and a 0.375 inch shank diameter with an overall length of 2.5 inches. The two-flute geometry with a 30-degree spiral helix promotes efficient chip evacuation and smooth cutting action. A FIREX coating is applied to the cutting edges, providing enhanced heat resistance and extended tool life in demanding materials. Installed by machinists and tool-and-die professionals, this end mill is suited for finish and semi-finish milling passes where dimensional accuracy is critical.

This end mill is used in CNC machining centers and manual knee mills for slotting, profiling, and peripheral milling operations. The right-hand flute and right-hand cut configuration make it compatible with standard spindle rotation on conventional machining equipment. The regular-length flute design and solid carbide construction make it a practical choice for close-tolerance work in production and job-shop environments on ferrous and non-ferrous workpiece materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in metal cutting
• FIREX coating for elevated heat resistance and extended tool life
• 30-degree helix angle for efficient chip flow and reduced cutting forces
• Two-flute design optimized for slotting and profiling passes
• Right-hand cut with right-hand spiral flute for standard spindle compatibility
• Single-end configuration with 0.375 inch straight shank for secure collet or chuck holding

Compatibility

Designed as an OEM-style solid carbide square end mill in the GUHRING Series 3148, suited for use in standard end mill holders, ER collets, and milling chucks accepting a 3/8 inch shank diameter.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and the control in an e-stop or locked-out state. Confirm collet or holder bore size matches the 0.375 inch shank before clamping. Apply consistent and proper clamping torque to the collet nut per the toolholder manufacturer specifications. Inspect the cutting edges for chips or damage before each use and replace the tool if edge integrity is compromised.
