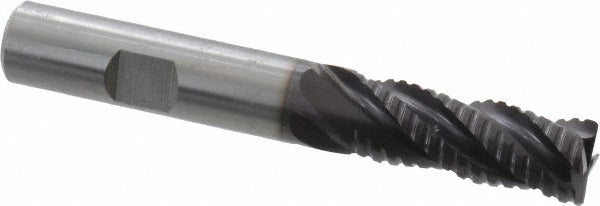

Guhring 9030810127000 Square End Mill 4 Flute Carbide

Product Description

The GUHRING 9030810127000 is a solid carbide square end mill designed for precision metal removal in milling applications. Built on GUHRING's Series 3081 platform, it features a nano-A finish and a 38-degree helix angle that promotes smooth chip evacuation and reduced cutting forces. The four-flute, centercutting geometry allows both peripheral and plunge cuts. With a 0.5-inch cutting diameter, a 1.25-inch length of cut, and a 0.5-inch shank diameter, this tool fits standard end mill holders and collet chucks used in CNC machining centers and manual knee mills. It is installed by machinists and tool-and-die professionals working in ferrous and non-ferrous materials.

This end mill is suited for general-purpose slotting, profiling, and pocketing operations in job shop and production environments. The coarse pitch, variable helix style, and right-hand cut with right-hand flute configuration make it a reliable choice for stable cuts in steel, stainless, cast iron, and similar materials. The regular-length body keeps deflection low on shorter reach applications, and the centercutting tip allows direct plunge entry without a pre-drilled hole.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• nano-A finish reduces friction and extends tool life in ferrous materials
• 38-degree helix angle promotes chip evacuation and smooth surface finish
• Centercutting design enables direct plunge milling
• Four-flute configuration balances material removal rate and chip clearance
• Right-hand cut, right-hand flute geometry for standard spindle operation

Compatibility

Designed as an OEM-style tooling solution for standard 0.5-inch end mill holders and collet chucks used in CNC machining centers and manual milling machines.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle at a full stop and machine power locked out. Seat the shank fully in the holder and torque the set screw or collet nut per the holder manufacturer's specification. Inspect the tool for chips or edge damage before each run. Follow applicable shop safety standards and machine manufacturer guidelines for runout and balance requirements.
