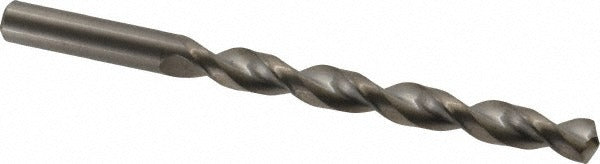

Guhring 9026010090000 Carbide Jobber Drill Bit 9mm

Product Description

The GUHRING 9026010090000 is a solid carbide jobber length drill bit designed for precision drilling in demanding industrial and machining applications. Built from submicron-grade carbide with a bright coating, it delivers consistent performance in ferrous and non-ferrous materials. The 130-degree split point geometry with web thinning reduces entry force and minimizes walking on contact. At 4.875 inches overall length with a 3.5-inch parabolic flute, it provides efficient chip evacuation and stable cutting action. This bit is sized at 9 mm (0.3543 inch) with a straight-cylindrical shank of matching diameter, making it compatible with standard drill chucks and collet holders.

This drill bit is suited for production machining environments, tool rooms, and precision fabrication shops. It is a right-hand cut tool intended for use in CNC machining centers, drill presses, and manual mills where consistent hole tolerance is required. The diameter tolerance of +0.000 to -0.022 mm supports close-tolerance bore work. It conforms to ANSI specification designations, making it appropriate for shops with standardized tooling programs. Installation is performed by machinists and tooling specialists in industrial manufacturing settings.

Key Features

• Submicron solid carbide construction for extended tool life in abrasive materials
• 130-degree standard point angle with web-thinned, tapered web for reduced thrust force
• Parabolic flute geometry promotes fast chip evacuation and reduces heat buildup
• Bright coating finish maintains dimensional accuracy without added coating thickness
• Straight-cylindrical shank at 0.3543 inch diameter fits standard chucks and collet systems
• Right-hand cut, ANSI-specification compliant for standardized tooling programs

Compatibility

Designed as a jobber-length replacement or production-use drill bit for applications requiring a 9 mm (0.3543 inch) diameter straight-shank carbide drill conforming to ANSI standards in the 0.3500 to 0.4000 inch drill size range.

Installation Notes

This bit is installed by machinists in CNC or manual drilling equipment. Ensure the spindle and chuck or collet are fully de-energized and locked out before changing tooling. Verify chuck or collet bore matches the 0.3543-inch shank diameter for proper seating and runout control. Do not exceed the tool manufacturer's recommended speed and feed parameters for the workpiece material.
