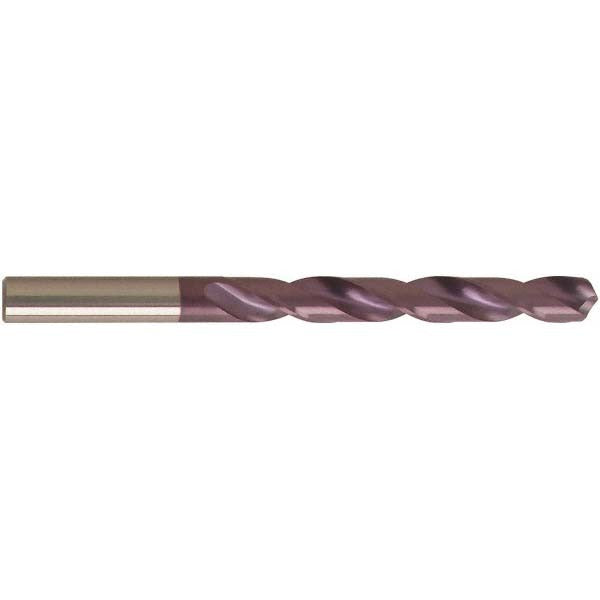

Guhring 9024640019800 Carbide Drill Bit 5/64 Inch

Product Description

The GUHRING 9024640019800 is a solid carbide jobber length drill bit designed for precision drilling in demanding shop and field applications. Built to DIN specification in Series 2464, it features a 118-degree faceted point angle and a FIREX coating that improves wear resistance and reduces built-up edge during cutting. The straight-cylindrical shank and web-thinned tip make this bit suitable for use in standard drill chucks without modification. Machinists, tool-and-die workers, and maintenance technicians install this bit in CNC machines, drill presses, and handheld power drills where consistent, tight-tolerance holes are required.

This bit is rated for general-purpose drilling with a primary focus on aluminum and similar non-ferrous workpiece materials, designated by material code N. The 5xD flute-by-diameter ratio and two-flute spiral design support efficient chip evacuation in shallow to moderate-depth hole applications. With a maximum drilling depth of 0.828 inches (21.03 mm) and a regular spiral type, it delivers controlled cutting performance in production and maintenance environments alike.

Key Features

• Solid carbide construction in material grade K40 for rigidity and wear resistance
• FIREX coating reduces friction and extends tool life in non-ferrous materials
• 118-degree faceted drill point for accurate self-centering entry
• Web-thinned tip reduces thrust force and improves penetration efficiency
• Right-hand cut, two-flute spiral design promotes consistent chip clearance
• Straight-cylindrical shank fits standard collets and keyless chucks without adapters

Compatibility

Designed as a general-purpose jobber length drill bit for use in CNC machining centers, drill presses, and handheld power drills accepting a 1.98 mm straight-cylindrical shank; primary workpiece material is aluminum and similar non-ferrous metals per material code N.

Installation Notes

Installation is performed by machinists and maintenance technicians familiar with rotating cutting tools. Secure the shank fully in the chuck or collet and confirm runout is within acceptable limits before drilling. Always wear appropriate eye protection and follow machine guarding requirements per applicable shop safety standards. Do not exceed the maximum drilling depth of 0.828 inches without retracting to clear chips.
