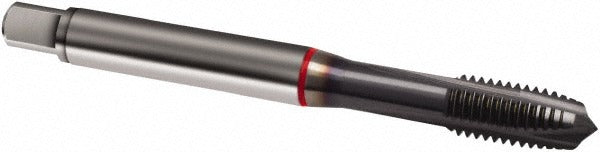

Guhring 9019140100000 Spiral Point Tap M10 X 1.5

Product Description

The GUHRING 9019140100000 is a spiral point tap designed for through-hole threading in metric applications. Built from cobalt high-speed steel and finished with a titanium carbonitride (TiCN) coating, this tap handles demanding cutting conditions with improved wear resistance and heat tolerance. It carries a plug chamfer for standard starting, a 6H thread class of fit, and a D4/D5 thread limit designation. The overall length is 100 mm with a 10 mm shank diameter. Machinists and toolroom technicians use this tap where consistent thread quality and tool life in steel are the primary concerns.

This tap is suited for through-hole threading operations on steel workpieces in both production and job-shop environments. The M10 x 1.5 metric thread profile and right-hand cut make it a standard-format tool for CNC machining centers, drill presses with tapping attachments, and manual tapping setups. The 3-flute geometry promotes chip evacuation forward through the hole, making it appropriate for through-hole applications rather than blind-hole work. It is sold individually and is a direct fit for any setup requiring an M10 x 1.5 plug tap.

Key Features

• Cobalt high-speed steel construction for improved hardness and heat resistance over standard HSS
• TiCN coating reduces friction and extends tool life in steel cutting applications
• Plug chamfer provides standard lead-in for most through-hole tapping operations
• 3-flute spiral point design pushes chips forward, keeping the flutes clear during through-hole threading
• 6H class of fit meets standard metric tolerance requirements for general fastener threads
• Right-hand thread direction compatible with conventional tapping setups and standard spindle rotation

Compatibility

Designed for through-hole threading in steel workpieces requiring an M10 x 1.5 metric plug tap with a 6H class of fit. Compatible with standard straight-shank tap holders and tapping chucks sized for a 10 mm shank diameter.

Installation Notes

This tap is intended for use by machinists and toolroom technicians in machine-shop environments. Secure the shank in a properly sized tap holder or tapping chuck before use, and verify spindle speed is appropriate for cobalt taps in the target material. Always apply a suitable cutting fluid to reduce heat buildup and improve thread finish. Inspect the tap for wear or chipping before each use and do not force a worn tap, as breakage in the hole can be difficult to recover.
