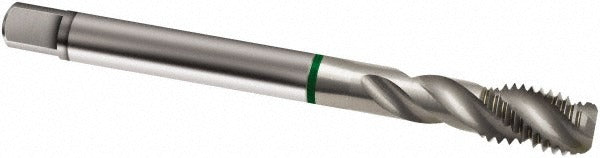

Guhring 9008900120000 Spiral Flute Tap M12x1.75 Cobalt

Product Description

The GUHRING 9008900120000 is a spiral flute tap designed for cutting internal threads in blind holes. Built from cobalt high-speed steel with a bright, uncoated finish, it cuts M12 x 1.75 metric threads to a 6H class of fit. The modified bottoming chamfer allows threading close to the bottom of a blind hole, making it well suited for tight-tolerance applications. With a 40-degree helix angle and a fast flute style, the tap efficiently evacuates chips upward out of the hole during cutting. This tap is intended for use by machinists, toolroom technicians, and maintenance professionals working with steel components.

This tap is designed for blind hole threading in alloyed and unalloyed steel. The right-hand flute and right-hand thread geometry follow standard tapping practice for most CNC and manual machine setups. At 110 mm overall length with a 9 mm shank diameter and 7 mm square drive size, it fits standard tap holders and machines used in production and repair environments. The D5 and D6 thread limits provide a precise fit within the 6H tolerance class, supporting consistent thread quality across multiple applications.

Key Features

• M12 x 1.75 metric thread form cut to 6H class of fit
• Modified bottoming chamfer for threading near the base of blind holes
• 40-degree helix angle with fast flute style for efficient chip evacuation
• Cobalt construction for improved wear resistance in steel applications
• Right-hand flute and right-hand thread for standard tapping operations
• D5 and D6 thread limits for consistent tolerance control

Compatibility

Designed for blind hole threading in alloyed and unalloyed steel. Compatible with standard tap holders sized for a 9 mm shank diameter and 7 mm square drive. Part of the GUHRING Series 890 spiral flute tap line.

Installation Notes

This tap is installed and operated by machinists or maintenance technicians using manual tap wrenches or machine tap holders. Ensure the workpiece is securely fixtured and the spindle or wrench is properly aligned before beginning the threading operation. Always use appropriate cutting fluid for steel to extend tool life and improve thread finish. Do not exceed the recommended tap speed for the material and tap size being used.
