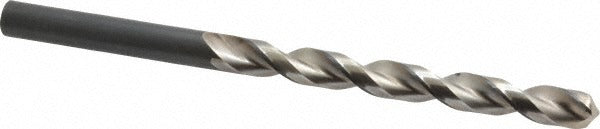

Guhring 9005350134900 Taper Length Drill Bit 17/32

Product Description

The GUHRING 9005350134900 is a taper length drill bit designed for precision hole-making in industrial and trade applications. Built from high-speed steel (HSS) with a bright/uncoated finish, this bit measures 17/32 inch (0.5313 inches) in diameter and carries a 130-degree point angle for fast, accurate starting. The parabolic flute geometry promotes efficient chip evacuation, reducing heat buildup during extended cuts. With an overall length of 8-7/16 inches and a flute length of 5-1/2 inches, it delivers greater reach than a standard jobber-length bit without sacrificing rigidity. Machinists, tool-and-die technicians, and maintenance professionals use this bit with drill presses, CNC machines, and hand-operated drilling equipment.

The 9005350134900 is suited for drilling aluminum alloy, cast iron, and steel in manufacturing, fabrication, and MRO environments. The straight shank with a matching 17/32-inch shank diameter fits standard three-jaw chucks across a wide range of drilling platforms. This Series 535 bit conforms to DIN 340 specification, making it a recognized standard in metric-aligned tooling programs common in precision shops.

Key Features

• 17/32 inch (0.5313 inches) diameter with a 130-degree standard point angle for self-centering entry
• Parabolic flute geometry promotes fast chip evacuation in deep-hole drilling
• High-speed steel construction rated for high-performance drilling duty
• Web-thinned, parallel-web design reduces thrust force at the cutting tip
• Bright/uncoated finish suitable for general-purpose metal drilling without coating buildup concerns
• DIN 340 specification conformance for compatibility with metric-aligned tooling programs

Compatibility

Designed as an OEM-style taper length drill bit for use in materials including aluminum alloy, cast iron, and steel, fitting any standard chuck that accepts a 17/32-inch straight shank.

Installation Notes

This bit should be installed by a qualified machinist or maintenance technician using a properly sized chuck key and torqued securely before use. Always power down and lock out the drilling machine before changing bits. Verify spindle speed against recommended surface footage for the target material before drilling to prevent premature wear or breakage. Do not use this bit in percussion or hammer-drill mode.
