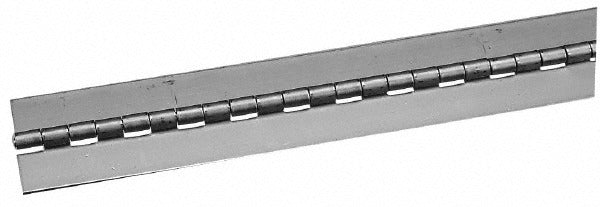

Guden SS06060409-72 Piano Hinge 2.5in X 72in Stainless Steel

Product Description

The GUDEN SS06060409-72 is a full-length piano hinge constructed from stainless steel, designed for continuous support along the entire length of a door, panel, lid, or access cover. Spanning 72 inches in overall length and 2.5 inches in overall width, this hinge distributes load evenly across its full run, reducing stress concentrations that shorter hinges create. At 0.05 inches thick, it suits light-to-medium duty enclosures, cabinetry, and equipment panels. The stainless steel construction resists corrosion, making it appropriate for both indoor and outdoor service environments where moisture or chemical exposure is a concern.

This piano hinge is suited for residential and commercial applications including cabinetry, electrical enclosures, HVAC access panels, storage boxes, and industrial equipment covers. Each door leaf and frame leaf measures 1.25 inches wide by 72 inches tall, providing symmetric mounting surfaces on both sides of the pivot. The 0.5-inch knuckle and 0.125-inch stainless steel pin provide the pivot mechanism. Fabricators, millworkers, enclosure builders, and field technicians working on panel access assemblies are the primary installers of this hinge type.

Key Features

• Full-length 72-inch continuous hinge for even load distribution
• Stainless steel hinge body and pin for corrosion resistance
• 1.25-inch door leaf width and 1.25-inch frame leaf width for symmetric mounting
• 0.05-inch thickness suits light-to-medium duty panel and enclosure applications
• 0.5-inch knuckle with 0.125-inch pin diameter
• RoHS compliant

Compatibility

Designed as a standard continuous piano hinge for use with doors, lids, panels, and enclosures requiring full-length hinge support along a 72-inch edge.

Installation Notes

Installation is typically performed by fabricators or maintenance technicians using standard hand tools. Pre-drill pilot holes to prevent material splitting and ensure accurate leaf alignment before fastening. Verify that mating surfaces are flat and coplanar before securing the hinge to avoid binding. Stainless steel fasteners are recommended to maintain corrosion resistance at the mounting points.
