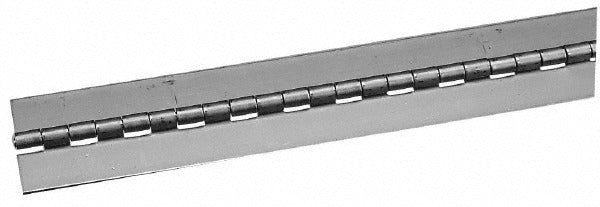

Guden SS04040206-72 Piano Hinge 1.5in X 72in Ss 304

Product Description

The GUDEN SS04040206-72 is a full-length piano hinge constructed from 304 stainless steel, designed for continuous support along the full length of a door, panel, lid, or access cover. At 72 inches long and 1.5 inches wide overall, this hinge distributes load evenly across the entire hinge line, reducing stress concentration at any single pivot point. The leaf thickness of 0.035 inches and a pin diameter of 0.086 inches reflect a lightweight but durable profile suitable for enclosures, equipment panels, and similar fabrication or finish-carpentry applications. Both the hinge body and pin are stainless steel for corrosion resistance.

This piano hinge is suited for residential and light commercial applications where a continuous hinge is required across a full 72-inch span. Typical uses include electrical enclosure doors, HVAC equipment access panels, cabinetry, and custom-fabricated equipment housings. Each leaf measures 0.75 inches wide and 72 inches tall, and the knuckle length is 0.25 inches. The RoHS-compliant construction makes it appropriate for installations in environmentally regulated environments.

Key Features

• Full-length 72-inch continuous hinge for even load distribution
• 304 stainless steel body and pin for corrosion resistance
• Overall width of 1.5 inches with dual 0.75-inch leaves
• Leaf thickness of 0.035 inches for low-profile installations
• Pin diameter of 0.086 inches with 0.25-inch knuckle length
• RoHS compliant

Compatibility

Designed as a standard continuous piano hinge suitable for doors, panels, lids, and enclosures requiring full-length 72-inch hinge support in fabrication and finish applications.

Installation Notes

Installation is typically performed by a fabricator, millworker, or maintenance technician using standard hand tools. Mounting holes should be drilled and fasteners torqued per the substrate material requirements. Ensure the mating surface is flat and aligned before securing both leaves to prevent binding at the pin. Disconnect all power or relieve any mechanical tension on the panel or door before beginning installation.
