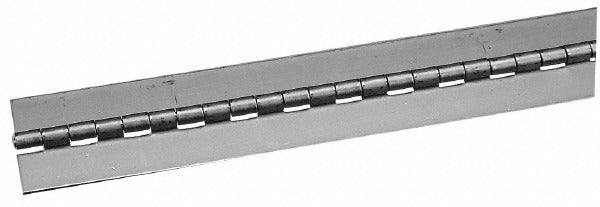

Guden PS07070410-72 Piano Hinge 3in X 72in Steel

Product Description

The GUDEN PS07070410-72 is a full-length steel piano hinge designed for continuous support along the entire length of a door, panel, lid, or enclosure edge. Spanning 72 inches in overall length and 3 inches in overall width, it distributes load evenly across the full height of the leaf rather than concentrating stress at two or three point-mounted hinges. At 0.06 inches thick with a pin diameter of 0.187 inches and a knuckle length of 0.5 inches, this hinge is suited for light- to medium-duty applications where precise alignment and long-term joint stability are required. Licensed trades and industrial fabricators install these hinges on equipment enclosures, access panels, cabinetry, and similar assemblies.

This hinge is used in both commercial and light industrial settings where a continuous pivot point is needed along a full panel edge. Typical applications include control panel doors, electrical enclosure lids, storage box covers, and interior cabinetry. Each leaf measures 1.5 inches wide by 72 inches tall, providing a balanced frame and door leaf configuration. The steel construction makes it appropriate for interior or controlled-environment installations where consistent mechanical performance is the priority.

Key Features

• Full 72-inch continuous length distributes load evenly across the entire panel edge
• 3-inch overall width with matched 1.5-inch door and frame leaf widths for balanced mounting
• Steel construction for durable, long-term mechanical performance
• 0.187-inch pin diameter with 0.5-inch knuckle length for smooth, stable rotation
• RoHS compliant materials
• 0.06-inch thickness suits light- to medium-duty panel and enclosure applications

Compatibility

Designed as a continuous piano hinge replacement or new-installation component for doors, lids, and panels requiring a full-length 72-inch pivot with a 3-inch overall width and standard 1.5-inch leaf configuration.

Installation Notes

Piano hinges of this length are typically installed by sheet metal fabricators, millworkers, or industrial maintenance technicians. Before installation, ensure the mounting surface is clean, flat, and properly supported along the full hinge length. Pre-drill pilot holes to prevent material splitting or fastener misalignment, and use fasteners appropriate for the substrate material and load requirements. Do not bend or cut the hinge without proper tooling, as deformation can compromise pin alignment and long-term joint integrity.
