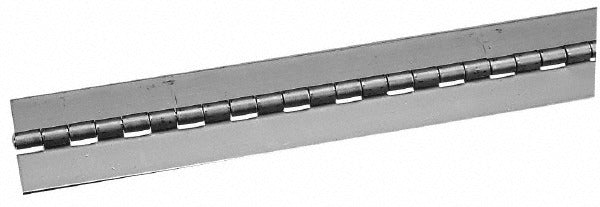

Guden PS07060408-84 Piano Hinge 2in X 84in Steel

Product Description

The GUDEN PS07060408-84 is a full-length steel piano hinge designed for continuous support across the entire length of a door, panel, lid, or enclosure. Measuring 2 inches wide and 84 inches long with a thickness of 0.06 inches, this hinge distributes load evenly along its full span rather than concentrating stress at two or three points. The steel construction and steel pin provide consistent strength for high-cycle or heavy-duty applications. At 3.48 pounds, it offers solid material presence without excessive added weight to the assembly. This hinge is typically installed by millworkers, cabinet makers, sheet metal fabricators, or general contractors working on access panels, instrument enclosures, folding tables, and similar long-span pivot applications.

Piano hinges of this profile are used across residential and light commercial settings wherever a continuous pivot line is required. Common applications include piano lids, toolbox lids, fold-down workbenches, electrical enclosure doors, and cabinetry requiring full-edge support. The 84-inch length makes it well-suited for standard full-height door panels and tall enclosure assemblies. Each leaf measures 1 inch wide, combining to the 2-inch overall width when open flat. The 0.5-inch knuckle and 0.125-inch pin diameter are consistent with standard piano hinge profiles used in fabrication and carpentry trades.

Key Features

• Full 84-inch continuous length distributes load evenly along the entire hinge line
• Steel hinge body and steel pin for durable, consistent performance
• 0.06-inch material thickness suitable for light to medium duty panel and enclosure applications
• 1-inch door leaf width and 1-inch frame leaf width for balanced mounting geometry
• 0.5-inch knuckle length with 0.125-inch pin diameter for smooth pivot action
• RoHS compliant materials

Compatibility

Designed as a standard continuous piano hinge for use in door, panel, lid, and enclosure assemblies requiring full-length pivot support along an 84-inch span.

Installation Notes

Piano hinges are typically installed by woodworkers, fabricators, or finish carpenters using standard drill and screw fastening methods appropriate to the substrate material. Ensure the mating surfaces are flat and aligned before fastening to prevent binding along the pivot. Fastener selection should match the base material thickness and expected load. Follow applicable building or equipment codes when installing on access panels or enclosures subject to inspection.
