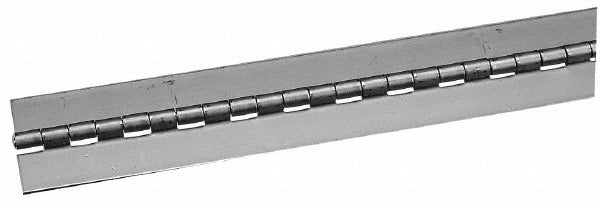

Guden PS06060408-72 Piano Hinge 2in X 72in Steel

Product Description

The GUDEN PS06060408-72 is a full-length steel piano hinge designed for continuous along-the-edge support on doors, panels, lids, and enclosures. Measuring 2 inches wide and 72 inches long with a 0.0500-inch leaf thickness, this hinge distributes load evenly across the entire joint length, reducing stress concentration that shorter hinges create. Each leaf is 1 inch wide and 72 inches tall, with a steel pin measuring 0.125 inches in diameter running through 0.5-inch knuckles. It is installed by HVAC technicians, millwork tradespeople, electricians, and general contractors wherever a long, stable pivot point is required.

This piano hinge is suited for residential and light commercial applications where continuous hinge support is required. Typical installations include control panel access doors, equipment enclosures, cabinetry, and specialty door assemblies. The full 72-inch length means it can be cut to a shorter dimension in the field to fit the exact opening, making it versatile across a range of panel and door heights. Steel construction handles moderate mechanical loads without deflection.

Key Features

• Full 72-inch continuous length for maximum pivot-line support
• 2-inch overall width with equal 1-inch door and frame leaf widths
• 0.125-inch diameter steel pin through 0.5-inch knuckles
• 0.0500-inch leaf thickness for low-profile installation
• Steel construction throughout for durability in mechanical and enclosure applications
• RoHS compliant

Compatibility

Designed as a continuous piano hinge for doors, lids, and panels requiring full-length pivot support. No specific model or system compatibility was stated in the product data.

Installation Notes

Piano hinges of this type are installed by fabricators, HVAC technicians, and general contractors using standard drill and screw fasteners appropriate for the substrate material. The hinge can be cut to length with a metal saw before mounting. Power down any associated electrical enclosure before installing or servicing panels fitted with this hinge. Ensure fastener hole spacing is consistent along the full leaf length to maintain even load distribution.
