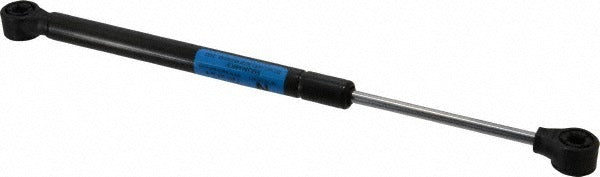

Guden GGN44-060-C Fixed Force Gas Spring 60 Lb

Product Description

The GUDEN GGN44-060-C is a fixed force gas spring designed to provide consistent, controlled extension force in industrial and commercial applications. It delivers 60 pounds of capacity through a steel-bodied assembly with an epoxy-coated finish and a black nitride piston for corrosion resistance. The rod measures 0.24 inches in diameter and the tube measures 0.59 inches in diameter, with a 12-inch extended length and a 3.5-inch stroke. End fitting connection is a plastic ball socket. This type of component is installed by maintenance technicians, mechanical assemblers, and industrial equipment specialists.

Fixed force gas springs like the GGN44-060-C are used in a wide range of applications including equipment access panels, machine guards, tool chests, and industrial enclosures where consistent lid or door support is required. The fixed force design means the spring delivers a constant rated load throughout the stroke, making it suitable for applications where predictable travel resistance and controlled motion are the priority. Residential and light commercial cabinetry and fixture applications are also common use cases.

Key Features

• Fixed force design delivers consistent 60 lb capacity across the full 3.5-inch stroke
• Black nitride piston coating for wear resistance and corrosion protection
• Epoxy-coated exterior finish adds durability in industrial environments
• Plastic ball socket end fitting for straightforward mounting and articulation
• Steel construction for structural integrity under repeated cycling
• Compact 12-inch extended length suits space-constrained installations

Compatibility

Designed as an OEM-style or replacement fixed force gas spring for industrial equipment panels, enclosures, and access covers requiring a 60 lb rated spring with a 0.59-inch tube diameter and plastic ball socket end fitting.

Installation Notes

Installation is typically performed by mechanical technicians or equipment assemblers. Depressurize or fully unload any existing spring assemblies before removal. Ensure mounting hardware is compatible with the plastic ball socket end fitting and that the mounting points are properly aligned to prevent side-loading the rod. Never drill into or modify the gas spring body, as the pressurized cylinder is not serviceable.
