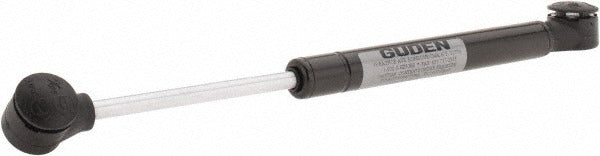

Guden GGN43-100-C Fixed Force Gas Spring 100 Lb

Product Description

The GUDEN GGN43-100-C is a fixed force gas spring designed to provide consistent 100-pound extension force throughout its full stroke. It features a nitrogen gas force mechanism, a black nitride-coated piston for corrosion and wear resistance, and an epoxy-coated steel body. With a rod diameter of 0.24 inches and a tube diameter of 0.59 inches, this gas spring is built for repeatable, reliable operation in industrial and OEM equipment applications. End fitting connection is a plastic ball socket with an M6 x 1.00 thread size. Maintenance technicians and equipment builders install this type of component where controlled lid, hatch, or panel movement is required.

This gas spring suits residential and commercial equipment assemblies where a fixed, non-adjustable extension force is needed. Typical applications include cabinetry lids, equipment enclosures, access panels, and toolboxes. The 3.15-inch stroke and 9.6-inch extended length make it appropriate for moderate-travel hinge and pivot applications. It installs in brackets or mounting hardware designed for ball socket end fittings with M6 x 1.00 threading. No force adjustment is available on this fixed-force design, so confirm the 100-pound rating matches the load requirement before installation.

Key Features

• Fixed 100-pound extension force via nitrogen gas mechanism
• Black nitride piston coating for wear and corrosion resistance
• Epoxy-coated steel body for additional surface protection
• Plastic ball socket end fitting with M6 x 1.00 thread
• 9.6-inch extended length with a 3.15-inch stroke
• Compact 6.45-inch compressed length for space-constrained assemblies

Compatibility

Designed as an OEM-style fixed force gas spring for equipment enclosures, access panels, and hinged assemblies requiring a ball socket end fitting with M6 x 1.00 threading and a 100-pound force rating.

Installation Notes

Installation is typically performed by equipment assemblers or maintenance technicians. Relieve any stored pressure or load from the panel or lid before removing an existing gas spring. Confirm mounting bracket thread compatibility with the M6 x 1.00 ball socket fitting before installation. Do not exceed the rated 100-pound capacity, and do not attempt to disassemble or recharge the nitrogen gas cylinder.
