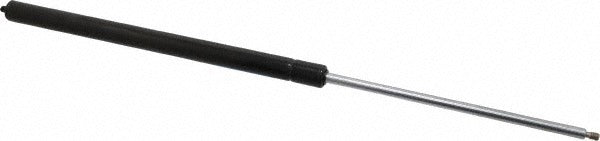

Guden GGN24-060-X Fixed Force Gas Spring 60 Lb

Product Description

The GUDEN GGN24-060-X is a fixed force gas spring designed to provide consistent 60-pound extension force throughout the full range of motion. Nitrogen gas pressurizes the cylinder to deliver smooth, controlled linear force in lift, counterbalance, and positioning applications. The rod measures 0.32 inches in diameter with a 0.75-inch tube diameter, an extended length of 19.63 inches, and a compressed length of 12.63 inches for a 7-inch stroke. The piston carries a black nitride coating for wear resistance, and the body receives an epoxy finish for corrosion protection. Maintenance technicians, machine builders, and fabricators working with industrial assemblies, tooling fixtures, or access panels are the typical installers.

This gas spring fits applications requiring a constant extension force without adjustment. Common install scenarios include industrial equipment lids, access doors, machine guards, toolboxes, and light-duty lift-assist assemblies where a fixed 60-pound force is appropriate. The M6 x 1.00 threaded end fitting allows secure attachment to standard threaded hardware and brackets. It is suited for both OEM production builds and field replacement on existing assemblies that use similarly sized fixed-force nitrogen gas springs.

Key Features

• Fixed 60-pound nitrogen gas force - consistent output across the full 7-inch stroke
• Black nitride piston coating for extended wear life
• Epoxy body finish for corrosion resistance in industrial environments
• M6 x 1.00 threaded end fitting for secure, standard hardware attachment
• Steel construction for durability in demanding service conditions
• Compact 12.63-inch compressed length with 19.63-inch fully extended length

Compatibility

Designed as an OEM-style replacement or new-build component for industrial assemblies, access panels, and positioning fixtures requiring a fixed-force nitrogen gas spring with a 0.75-inch tube diameter and M6 x 1.00 threaded end connection.

Installation Notes

Installation is typically performed by maintenance technicians or machine builders familiar with linear motion hardware. Relieve any stored mechanical load on the assembly before removing an existing gas spring, and ensure mounting brackets and threaded end hardware are rated for the applied force. Thread engagement on M6 fittings should follow standard fastener torque practices using appropriate hand tools - do not over-torque threaded end connections. Gas springs contain pressurized nitrogen and must not be drilled, welded, or subjected to temperatures beyond the rated operating range.
