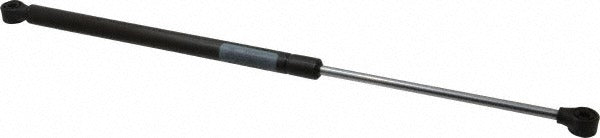

Guden GGN24-030-C Fixed Force Gas Spring 30 Lb

Product Description

The GUDEN GGN24-030-C is a fixed force gas spring designed to provide consistent, controlled linear force in industrial and mechanical assemblies. Charged with nitrogen gas, it delivers a rated capacity of 30 pounds throughout its full 7-inch stroke. The rod measures 0.32 inches in diameter and seats inside a 0.75-inch diameter steel tube with an epoxy-coated finish for corrosion resistance. A black nitride piston coating reduces wear and extends service life in repetitive-cycle applications. At 19.63 inches extended and 12.63 inches compressed, this unit fits a range of medium-duty panel, lid, and hatch applications. Installation requires no special tooling beyond standard fasteners.

This gas spring is suited for use in industrial equipment panels, machine enclosures, access hatches, and similar assemblies where a fixed, non-adjustable extension force is needed. It connects via a plastic ball socket end fitting with an M6 x 1.00 thread, making it compatible with standard metric ball stud hardware. Typical installers include industrial maintenance technicians and OEM equipment assemblers working on fabricated enclosures, cabinetry, or access covers in commercial and light industrial environments.

Key Features

• Fixed force nitrogen gas charge provides consistent 30-pound extension force across the full stroke
• Black nitride piston coating for improved wear resistance in high-cycle applications
• Epoxy-coated steel tube for corrosion protection in demanding environments
• Plastic ball socket end fitting with M6 x 1.00 thread for standard metric mounting hardware
• 7-inch stroke length with 19.63-inch extended and 12.63-inch compressed lengths

Compatibility

Designed as a fixed force gas spring replacement or OEM component for industrial enclosures, access hatches, and equipment panels requiring a 30-pound extension force with M6 x 1.00 ball socket end fittings.

Installation Notes

Installation is typically performed by industrial maintenance technicians or OEM assembly personnel. Ensure the mounting surface and mating ball stud hardware are rated for the applied load before installation. Depressurize or fully support any hinged panel or lid before removing an existing gas spring to prevent uncontrolled movement. Do not drill into, heat, or modify the gas spring body, as the internal nitrogen charge is pressurized.
