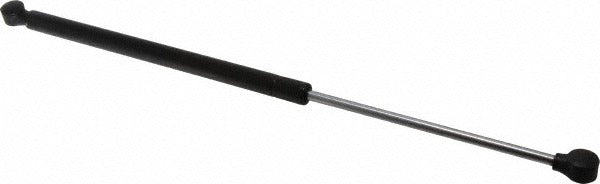

Guden GGN24-020-C Fixed Force Gas Spring 20 Lb

Product Description

The GUDEN GGN24-020-C is a fixed force gas spring designed to provide consistent, controlled linear force throughout its full range of motion. Built with a steel body and an epoxy-coated finish, this gas spring delivers a rated capacity of 20 pounds and an extended length of 19.63 inches with a 7-inch stroke. The black nitride piston coating offers corrosion resistance and extended service life. Installation is handled by equipment technicians, fabricators, and industrial maintenance professionals working on hinged panels, lids, access doors, and similar assemblies where controlled counterbalancing is required.

This fixed force gas spring is suited for light-duty industrial and commercial applications where a constant output force is acceptable and adjustability is not required. Typical install scenarios include equipment enclosures, machine guards, tool compartment lids, and service access panels. The plastic ball socket end fitting simplifies mounting and allows for minor angular adjustment at the attachment point, reducing bind during extension and retraction cycles.

Key Features

• Fixed force output rated at 20 pounds for consistent, predictable counterbalance performance
• 19.63 inch extended length with a 7 inch stroke for moderate-travel applications
• Black nitride piston coating for corrosion resistance and reduced wear
• Epoxy-coated steel body provides additional surface protection
• Plastic ball socket end fitting allows angular flexibility at the mount point
• Steel construction for structural durability in industrial environments

Compatibility

Designed as a fixed force gas spring replacement or new installation component for equipment enclosures, hinged lids, access panels, and similar assemblies requiring a 20-pound counterbalance force with a 0.32 inch rod diameter and 0.75 inch tube diameter.

Installation Notes

Gas springs must be installed by qualified technicians familiar with mechanical assemblies and counterbalance applications. Before installation or removal, relieve any load on the panel or lid and ensure the mounting hardware is rated for the applied force. Secure the ball socket end fittings to compatible ball studs before cycling the spring under load. Do not modify, drill, or attempt to recharge the gas spring cylinder.
