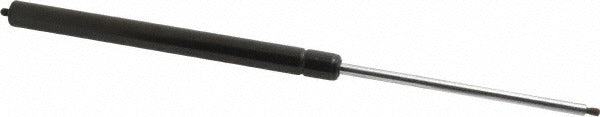

Guden GGN23-020-X Fixed Force Gas Spring 20 Lb

Product Description

The GUDEN GGN23-020-X is a fixed force gas spring designed to provide consistent, controlled linear force throughout the full stroke of motion. Charged with nitrogen gas, it delivers a rated capacity of 20 pounds across a 6-inch stroke, with an extended length of 17 inches and a compressed length of 11 inches. The rod measures 0.32 inches in diameter and the outer tube measures 0.75 inches in diameter. An epoxy coating on the body and a black nitride piston coating provide corrosion resistance for industrial and commercial environments. This part is installed by mechanical assemblers, maintenance technicians, and OEM equipment builders.

Fixed force gas springs are used in a wide range of industrial and commercial applications where a consistent extension force is needed, including equipment lids, access panels, tooling fixtures, and machinery enclosures. The threaded end fitting with M6 x 1.00 thread size allows for straightforward attachment to standard mounting hardware. The steel construction and surface coatings make this spring suitable for both interior and moderate-duty exterior installations where controlled motion and damping are required.

Key Features

• Fixed force design delivers consistent 20-pound output across the full 6-inch stroke
• Nitrogen gas charged force mechanism for reliable, long-cycle performance
• Black nitride piston coating resists wear and corrosion
• Epoxy-coated body finish for added surface protection
• Threaded end fitting with M6 x 1.00 thread for standard hardware compatibility
• Steel construction for durability in industrial and commercial use

Compatibility

Designed as a fixed force gas spring replacement or OEM component for equipment panels, lids, and access covers requiring a 20-pound extension force with M6 x 1.00 threaded end fittings and a 0.75-inch tube diameter.

Installation Notes

Installation should be performed by a qualified technician familiar with mechanical assemblies and gas spring safety practices. Depressurize or fully unload the assembly before removing an existing gas spring to prevent uncontrolled movement. Do not drill, weld, or expose the gas spring body to direct heat, as the internal nitrogen charge is under pressure. Verify that mounting hardware matches the M6 x 1.00 thread specification before installation to ensure a secure connection.
