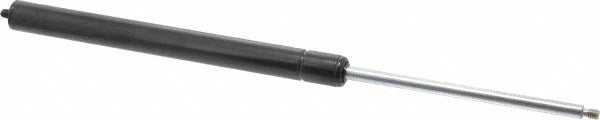

Guden GGN22-090-X Fixed Force Gas Spring 90 Lb

Product Description

The GUDEN GGN22-090-X is a fixed force gas spring rated at 90 pounds of force, designed to provide consistent, controlled linear motion in industrial and mechanical applications. The unit uses nitrogen gas as the force mechanism, delivering reliable push force throughout the full stroke. Key dimensions include a 0.32-inch rod diameter, a 0.75-inch tube diameter, an extended length of 15.25 inches, a compressed length of 10.25 inches, and a stroke length of 5 inches. The piston carries a black nitride coating, and the body features an epoxy coat finish for corrosion resistance. Threaded M6 x 1.00 end fittings allow straightforward attachment to compatible mounting hardware. Maintenance technicians, OEM assemblers, and millwrights commonly install this type of component.

Fixed force gas springs like the GGN22-090-X are used in applications that require a steady, predictable extension force without adjustment - common in industrial equipment panels, hinged enclosure lids, tooling fixtures, and machine guards. The 90-pound force rating and 5-inch stroke make this unit suitable for medium-duty counterbalancing tasks in both production and field service environments. Steel construction with an epoxy-coated finish adds durability in workshop and light industrial settings where surface exposure is a concern.

Key Features

• Fixed 90-pound nitrogen gas force - consistent output across the full 5-inch stroke
• Black nitride piston coating for wear resistance and reduced friction
• Epoxy-coated steel body for corrosion protection
• Threaded end fittings (M6 x 1.00) for secure, repeatable mounting
• Compact form factor: 15.25 inches extended, 10.25 inches compressed
• 0.32-inch rod diameter with 0.75-inch tube diameter for structural rigidity

Compatibility

Designed as an OEM-style fixed force gas spring replacement or new-installation component for industrial equipment, hinged assemblies, and mechanical fixtures requiring a threaded-end, nitrogen-charged spring with M6 x 1.00 end fittings.

Installation Notes

Gas springs should be installed by qualified maintenance technicians or mechanical assemblers familiar with linear motion hardware. Always depressurize or relieve load from the assembly before removing an existing gas spring. Never drill into, heat, or attempt to disassemble a pressurized gas spring cylinder. Verify that the mounting hardware thread pitch matches M6 x 1.00 before installation to avoid fitting damage.
