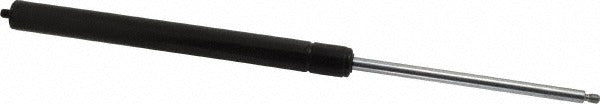

Guden GGN22-045-X Gas Spring 45 Lb Threaded End

Product Description

The GUDEN GGN22-045-X is a nitrogen-charged gas spring designed to provide controlled linear force in industrial and commercial applications. The unit delivers 45 pounds of force through a steel-bodied assembly featuring a 0.32-inch rod diameter and a 0.75-inch tube diameter. The piston carries a black nitride coating for corrosion resistance and wear durability. With a 15.25-inch extended length and a 5-inch stroke, this gas spring is sized for equipment lids, access panels, tooling fixtures, and similar counterbalance applications. Installation is typically performed by mechanical technicians or maintenance professionals working with custom fabrications or OEM-style replacements.

The GGN22-045-X fits applications requiring a threaded-end connection on both rod and body sides, allowing direct fastening to mounting hardware without additional adapters. It is used in industrial machinery, commercial equipment enclosures, workstation lids, and access doors where consistent, repeatable extension force is needed. A compressed length of 10.25 inches makes it suitable for assemblies with moderate space constraints. The nitrogen gas force mechanism ensures a consistent load curve across the full stroke length without hydraulic fluid or external power.

Key Features

• 45 lb rated force delivered by an internal nitrogen gas charge
• Black nitride piston coating resists corrosion and reduces surface wear
• Threaded-end fittings allow direct mechanical attachment without extra adapters
• 5-inch stroke length with a 15.25-inch extended length and 10.25-inch compressed length
• Steel construction for durability in industrial and commercial environments
• Compact rod diameter of 0.32 inches paired with a 0.75-inch tube diameter

Compatibility

Designed as an OEM-style or replacement gas spring for equipment and machinery applications requiring a threaded-end nitrogen gas spring with a 45 lb force rating and a 5-inch stroke.

Installation Notes

Gas springs should be installed by qualified mechanical technicians familiar with counterbalance and linear-force applications. Depressurize or fully support any connected load before removing the existing spring to prevent sudden movement. Do not drill into, heat, or attempt to disassemble the gas spring body, as the internal nitrogen charge is under pressure. Verify that mounting threads and hardware ratings match the 45 lb load capacity before finalizing installation.
