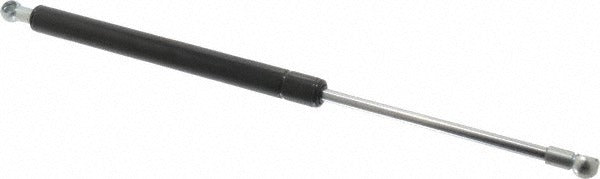

Guden GGN22-030-I Fixed Force Gas Spring 30 Lb

Product Description

The GUDEN GGN22-030-I is a fixed force gas spring designed to provide controlled, consistent extension force in industrial and commercial applications. It delivers 30 pounds of force using nitrogen gas as the force mechanism, with a 0.32-inch rod diameter and a 0.75-inch tube body diameter. The rod features a black nitride piston coating for corrosion resistance and wear durability. The exterior carries an epoxy coating for added protection. This part is installed by maintenance technicians, mechanical assemblers, and industrial equipment service professionals working on hinged access panels, lids, covers, or similar actuated assemblies.

The GGN22-030-I suits applications where a fixed, non-adjustable extension force is required. With a 15.25-inch extended length and a 5-inch stroke, it fits equipment enclosures, machine guards, industrial cabinetry, and access hatches that require the spring to hold a position without manual assistance. End connections use metal sockets with M6 x 1.00 threaded fittings. Note that this item requires two safety clips per gas spring, which must be accounted for during installation planning.

Key Features

• Fixed force output of 30 pounds, nitrogen gas actuated
• Black nitride piston coating resists corrosion and surface wear
• Epoxy exterior finish provides additional environmental protection
• Metal socket end fittings with M6 x 1.00 thread size for secure mounting
• 15.25-inch extended length with a 5-inch stroke and 10.25-inch compressed length
• Requires two safety clips per gas spring - clips must be sourced separately if not included

Compatibility

Designed as a fixed force gas spring replacement for industrial enclosures, equipment lids, and hinged access panels requiring a 30-pound extension force with metal socket end fittings and M6 x 1.00 thread connections.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical assemblers. Depressurize or isolate the equipment before removing or installing gas springs to prevent uncontrolled movement. Two safety clips are required per gas spring and must be installed as specified by the equipment manufacturer. Follow applicable OSHA lockout/tagout procedures when servicing equipment panels or enclosures that incorporate gas springs.
