Guardian Fall Protection 11322 Polydac Rope Vertical Lifeline Assembly (Various Lengths)

Product Description

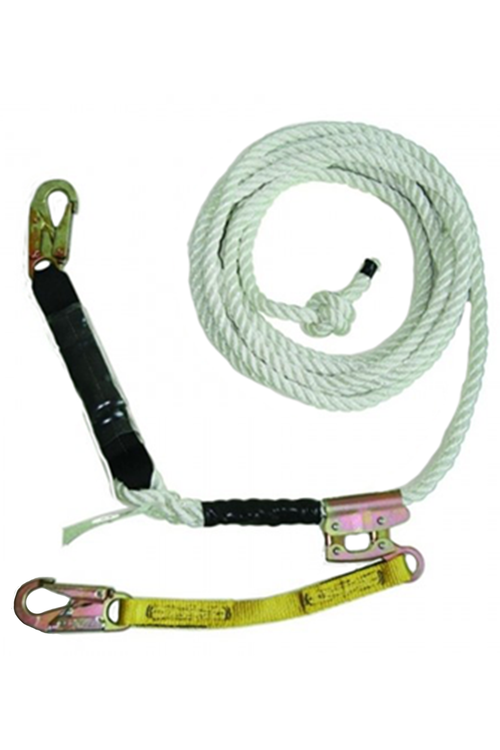

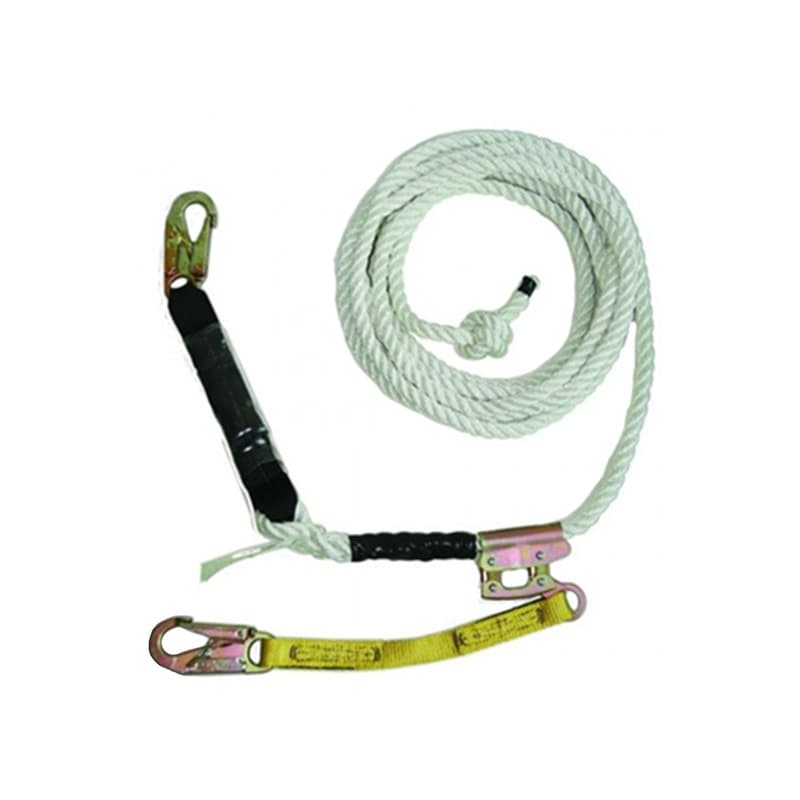

The Guardian Fall Protection 11322 Polydac Rope Vertical Lifeline Assembly is a rope lifeline with an integral shock absorber and an adjustable positioning device designed to replace a connecting device in fall protection systems. The 3-strand Polydac rope resists cuts and abrasions, is rot-resistant when stored wet, and provides energy absorption with about 8% working load elongation. The assembly is available in multiple lengths for single-user vertical lifeline applications.

• Integral shock absorber and adjustable positioning device for fall arrest and restraint applications

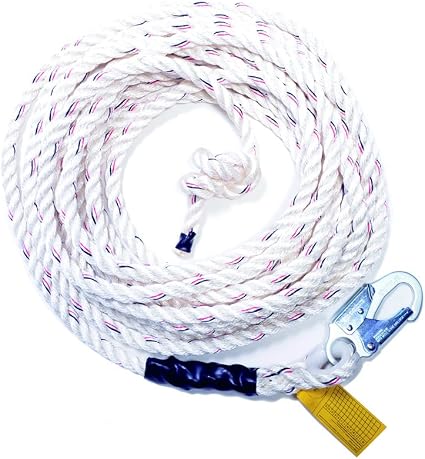

• 3-strand Polydac rope construction resists cuts and abrasions and is rot-resistant when stored wet
• Available in multiple lengths (25', 30', 50', 75', 100', 130', 150', 200') for single-user vertical lifeline use

Product Highlights

Includes shock absorber, positioning device, and 18-inch extension lanyard; 3-strand Polydac rope with ~8% working load elongation and high energy absorption.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 11322

Technical Specifications

• Brand: Guardian Fall Protection
• MPN: 11322
• Product Type: Polydac rope vertical lifeline assembly
• Available Lengths: 25', 30', 50', 75', 100', 130', 150', 200'
• Lifeline Material: 3-strand Polydac rope
• Material (components): Polydac rope and galvanized steel
• Product Weight: 7 lb / 3.18 kg
• Working Load Elongation: 8%
• Minimum Breaking Strength: 5000 lbs
• Worker Capacity Range: 130-310 lbs
• Max Number Of Users: 1
• Included Components: Integral shock absorber, positioning device, 18-inch extension lanyard
• Melting Point: Over 300 F
• Rot Resistance: Rot-resistant when stored wet
• Abrasion Resistance: Heavy-duty rope resists cuts and abrasions; good abrasion protection
• Certifications: Meets/exceeds ANSI Z359.1-07; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910
• Package Dimensions: 14.25 x 9.75 x 7.75 inches (package)
