Guardian Fall Protection 01310 Poly Steel Rope Vertical Lifeline Assembly (25 ft)

Product Description

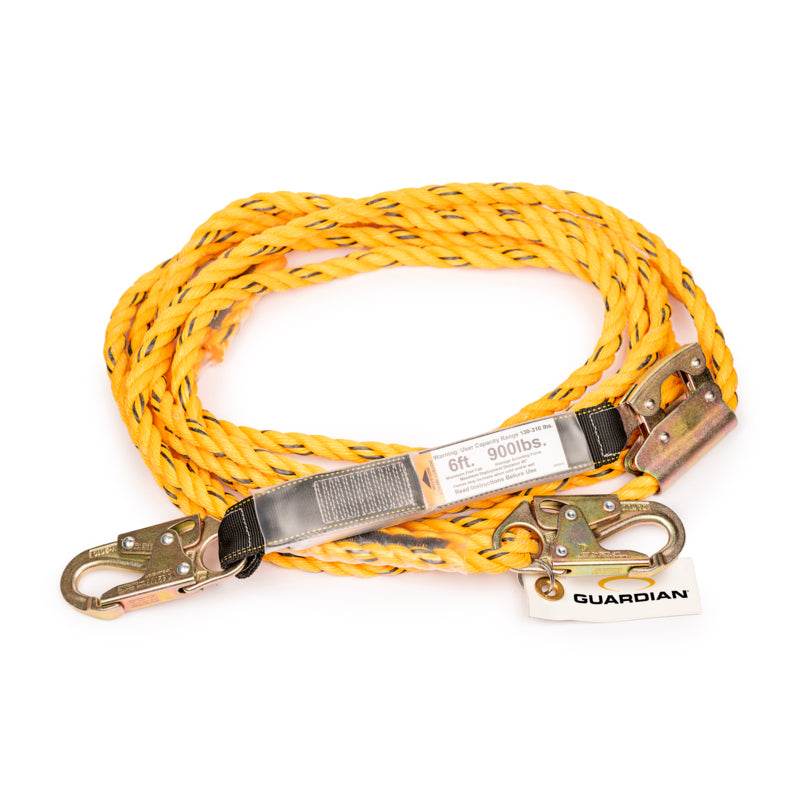

Guardian Fall Protection 01310 is a Poly Steel Rope Vertical Lifeline Assembly that functions as the connecting device in a fall protection system, combining a heavy-duty poly steel lifeline with an integral shock absorber and an adjustable positioning device. The assembly provides greater range of access than fixed-length lanyards, is available in lengths from 25 to 200 ft, and is designed for vertical fall arrest and positioning applications.

• Heavy-duty 5/8 in poly steel rope resistant to cuts, abrasion, and ultraviolet damage
• Integral shock absorber to reduce fall forces and adjustable positioning device for controlled movement along the lifeline
• Includes 18 in extension lanyard and two double-locking snap hooks (double locking snap anchorage and harness hooks)

Product Highlights

Vertical lifeline with shock absorber and adjustable positioning device; available in 25–200 ft lengths; complies with OSHA 1910.140 and 1926.502.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01310

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 01310
• Product Name: Poly Steel Rope Vertical Lifeline Assembly
• Line Length: 25 ft
• Available Lengths: 25 ft, 30 ft, 50 ft, 75 ft, 100 ft, 130 ft, 150 ft, 200 ft
• Line Material: Poly Steel Rope
• Rope Diameter: 5/8 in
• Weight Capacity: 130 to 310 lb
• Anchorage Hook Type: Double locking snap
• Harness Hook Type: Double locking snap
• Hook Material: Galvanized steel
• Includes: Poly steel rope; integral shock absorber; positioning device; 18 in extension lanyard; 2 double-locking snap hooks
• Product Weight: 6 lb / 2.72 kg
• Product Dimensions: 16 in (L) x 4 in (W) — packaged (height not specified)
• Compliance: OSHA 1910.140; OSHA 1926.502
• UPC: 672421013107
• GTIN: 00672421013107
• Product Type: Vertical lifeline assembly / lanyard
