Guardian Fall Protection 01122 Non-Shock Absorbing Extension Lanyard (18 in) Web Loop End

Product Description

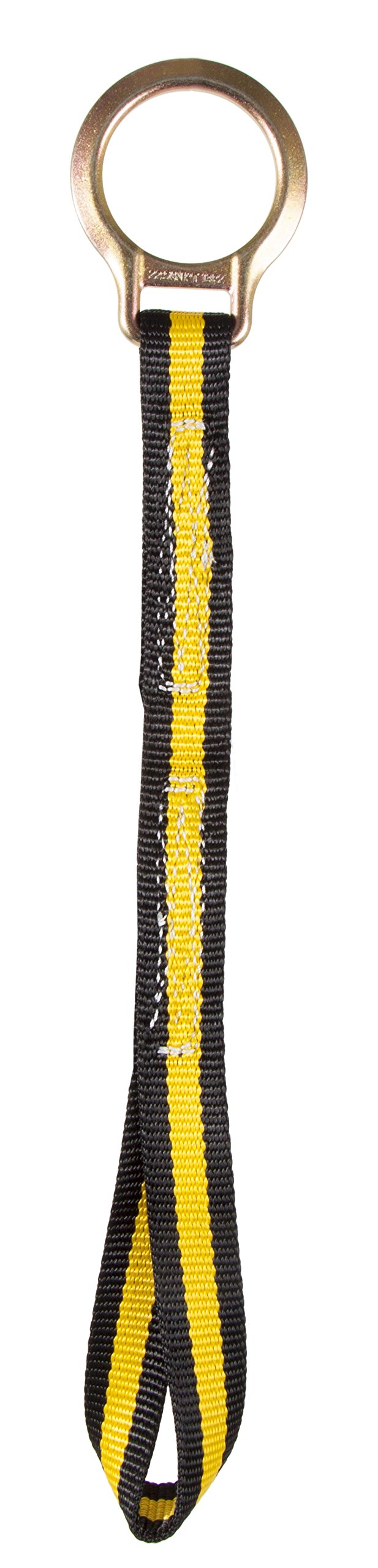

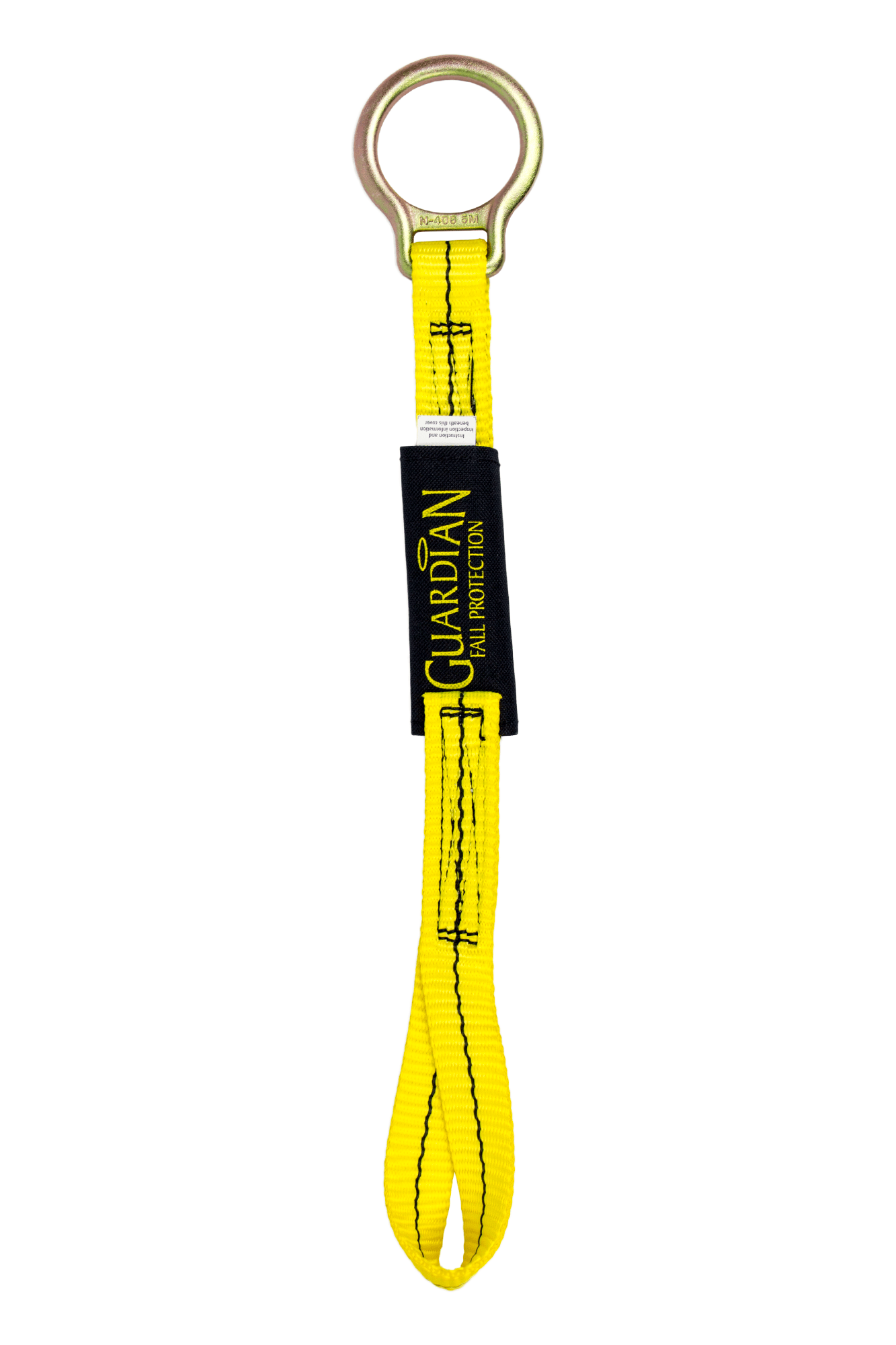

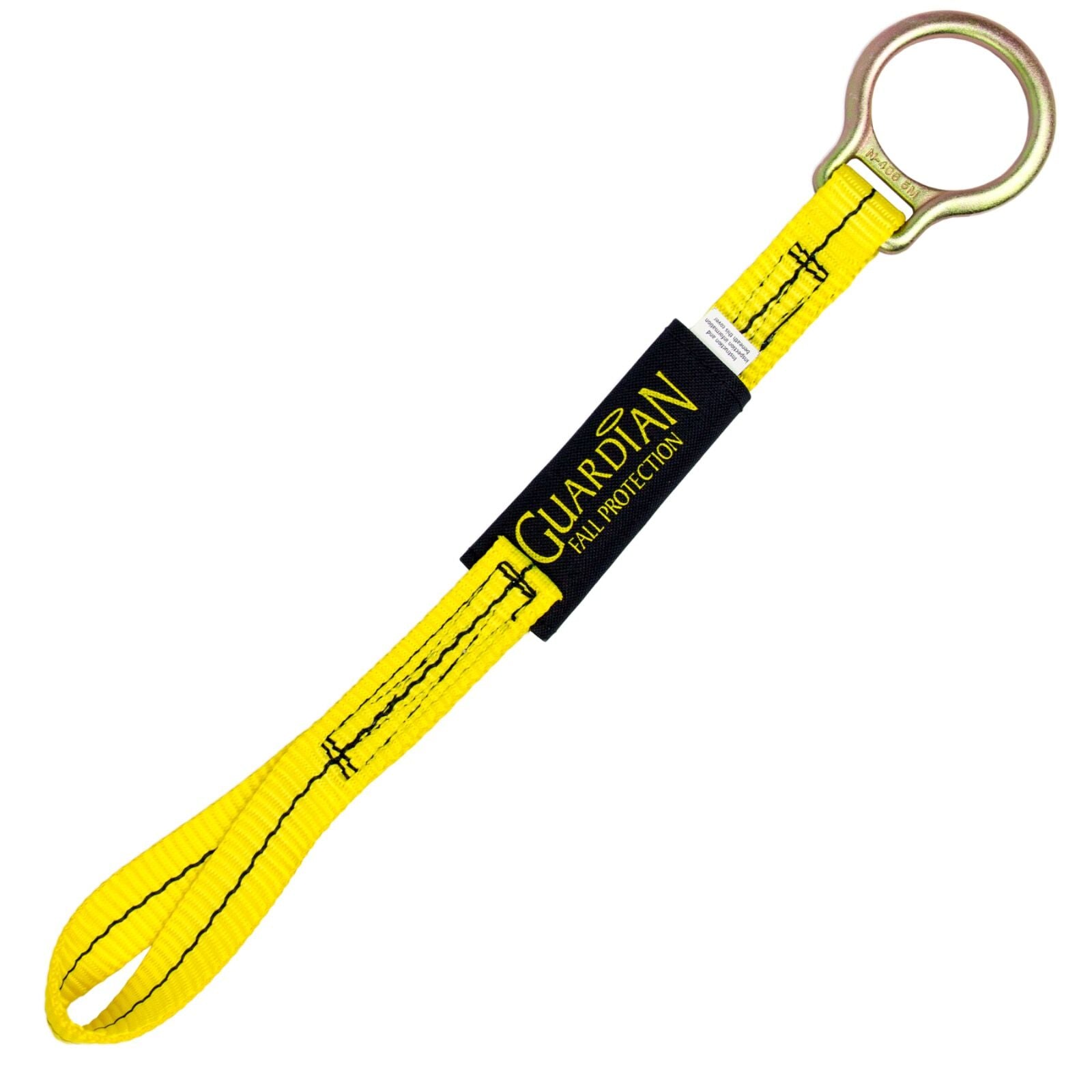

Guardian Fall Protection 01122 is a non-shock-absorbing extension lanyard that lengthens a full-body harness dorsal D-ring by 18 inches to lower the attachment point for easier connection. The single-leg lanyard uses nylon/polyester webbing with steel hardware and a web loop end, and it is rated for a 310 lb load. Users must account for the additional fall clearance and increased free fall when in use.

• 18 in non-shock-absorbing extension with web loop end to lower dorsal D-ring attachment
• Constructed from nylon/polyester webbing with steel hardware; single-leg design
• Rated for 310 lb load capacity; meets applicable ANSI and OSHA standards

Product Highlights

Single-leg, 18 in extension lanyard with web loop end; nylon/polyester webbing; steel hardware; 310 lb load capacity; non-shock-absorbing for fall restraint applications.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01122
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• MPN: 01122
• Product Name: Non-Shock Absorbing Extension Lanyard
• Length: 18 in

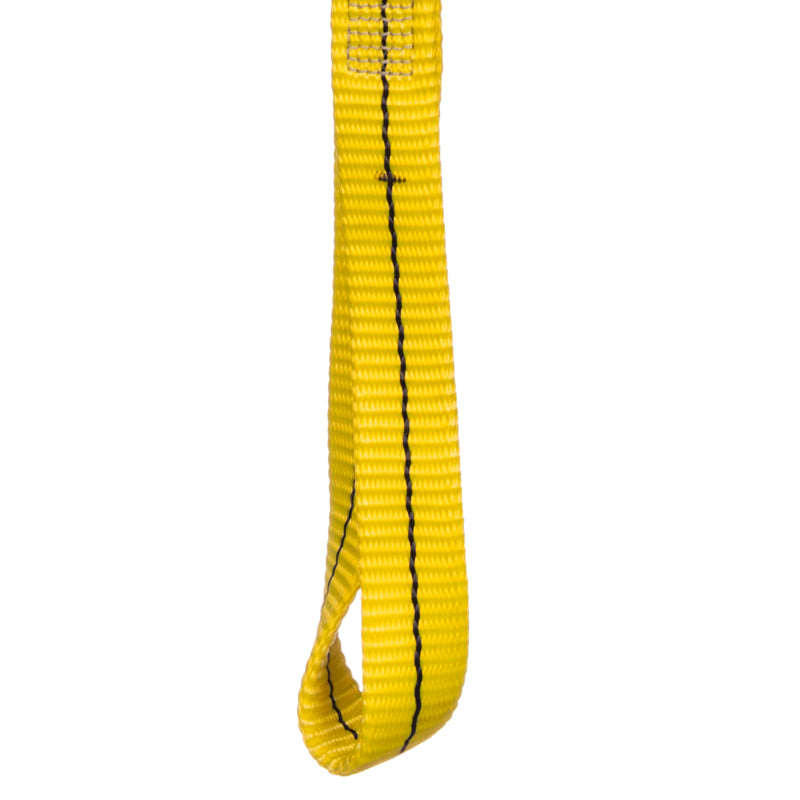

• End Type: Web loop end
• Line Material: Nylon / Polyester
• Webbing Width: 1 in

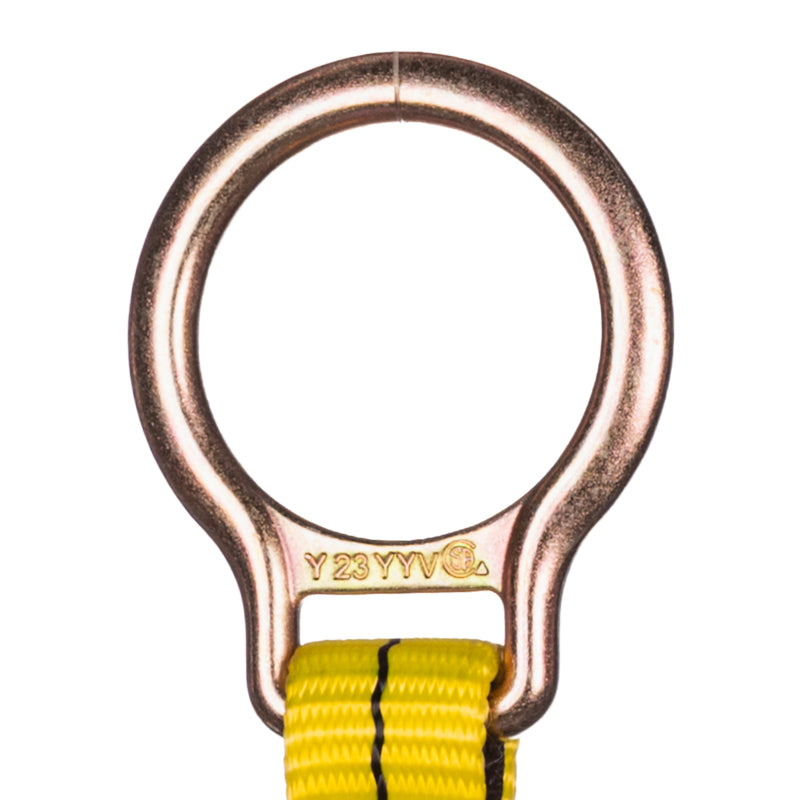

• Hardware Material: Steel
• Number of Legs: 1
• Shock Absorbing: No
• Load Capacity: 310 lb
• Tensile Strength: 5000 lb
• Hardware gate strength: 3600 lb
• Product Weight: 0.5 lb (227 g)
• Intended Use: Extends full-body harness dorsal D-ring to lower attachment point for fall restraint
• Features: Self-locking web-loop; label cover to protect identification
• Standards/Approvals: ANSI Z359.1-07; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910; ANSI Z359.3-17; OSHA 1910.140; ANSI Z359.13-2013; ANSI A10.32-2012
• Tensile Strength Notes: Product listed tensile strength 5000 lb; hardware gate strength listed at 3600 lb
• UPC: 672421011226
• GTIN/EAN: 0672421011226
• ASIN: B004A7XVE6
• Country of Origin: United States
• Package Contents: Non-Shock Absorbing Extension Lanyard
