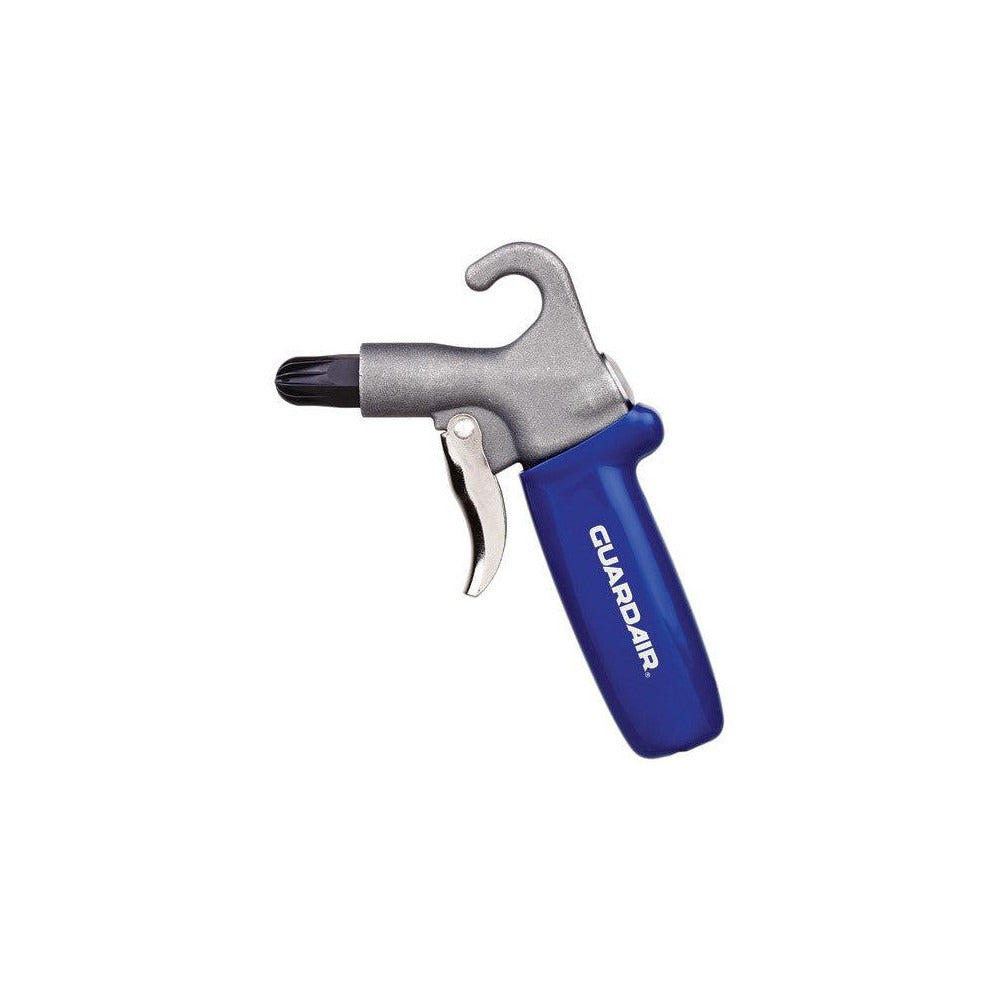

Guardair 74GHTP Air Blow Gun Plastic Tip 1/4 Npt

Product Description

The GUARDAIR 74GHTP is a compressed-air blow gun designed for industrial and shop maintenance applications. The body is cast zinc with a plastic tip and accepts a 1/4 NPT female inlet connection. It delivers up to 14 standard cubic feet per minute (SCFM) of airflow and holds a 74 dB noise rating, making it one of the quieter options in its class for continuous-use environments. The overall length of 6.7 inches gives technicians a comfortable one-hand grip during extended cleaning or drying tasks. Rated for a temperature range of -30 degrees F to 180 degrees F, it suits most indoor shop and light industrial service conditions.

The 74GHTP is suited for general-purpose air blowoff tasks including clearing chips and debris from work surfaces, drying parts after washing, and blowing out cavities during equipment service. It is commonly used in automotive shops, HVAC service vehicles, manufacturing facilities, and maintenance departments where a compact, lightweight blow gun is needed. The 1/4 NPT inlet is a standard connection size compatible with most shop air hose fittings and quick-connect adapters.

Key Features

• Zinc die-cast body for durability in shop environments
• Plastic tip rated for -30 degrees F to 180 degrees F operating range
• 14 SCFM airflow output for effective debris and chip clearing
• 74 dB decibel rating supports quieter operation during sustained use
• Compact 6.7-inch overall length for one-hand control
• 1/4 NPT female inlet fits standard shop air connections

Compatibility

Designed as a replacement or addition blow gun for compressed-air systems equipped with standard 1/4 NPT male hose fittings or quick-connect adapters.

Installation Notes

Installation is performed by qualified maintenance personnel or any technician working with compressed-air systems. Depressurize the air line before connecting or disconnecting the blow gun. Thread the 1/4 NPT inlet hand-tight plus a quarter turn with an appropriate wrench and apply thread sealant tape to prevent air leaks. Always direct airflow away from personnel and follow applicable OSHA compressed-air safety guidelines when in use.
