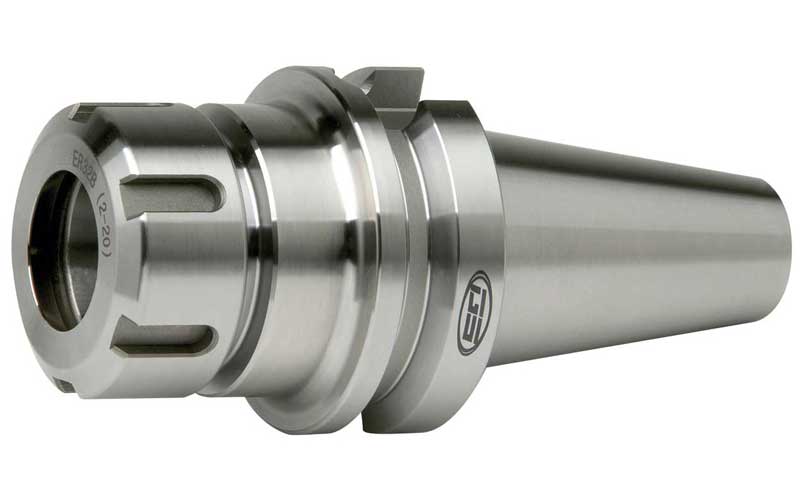

GS 532205 BT50 ER25-2.75 COLLET CHUCK

Product Description

The GS 532205 BT50 ER25-2.75 Collet Chuck is designed for precision gripping in milling applications. This collet chuck has a 2.75 inches projection and is compatible with BT50 tooling systems. It efficiently holds various tool sizes with a minimum holding diameter of 0.039 inches and a maximum holding diameter of 0.629 inches. The design allows for coolant flow during operation, ensuring effective tool cooling and enhanced performance.

• Compatible with BT50 tooling systems
• Allows coolant flow for tool cooling
• Holds tools with diameters from 0.039 inches to 0.629 inches

Product Highlights

This collet chuck is essential for achieving precise milling and drilling results in machining operations.

Product Information

Standard Information

• Brand: GS
• Part Number: GS-532-205

Technical Specifications

• BT Size: 50
• Projection: 2.7500 inches
• ER Size: ER25
• Minimum Holding Diameter: 0.039 inches
• Maximum Holding Diameter: 0.629 inches
• Coolant: Yes
