Gruvlok GVLF-AE7721-3-300 Grvd BFV E Grade Disc Epoxy Coated

Product Description

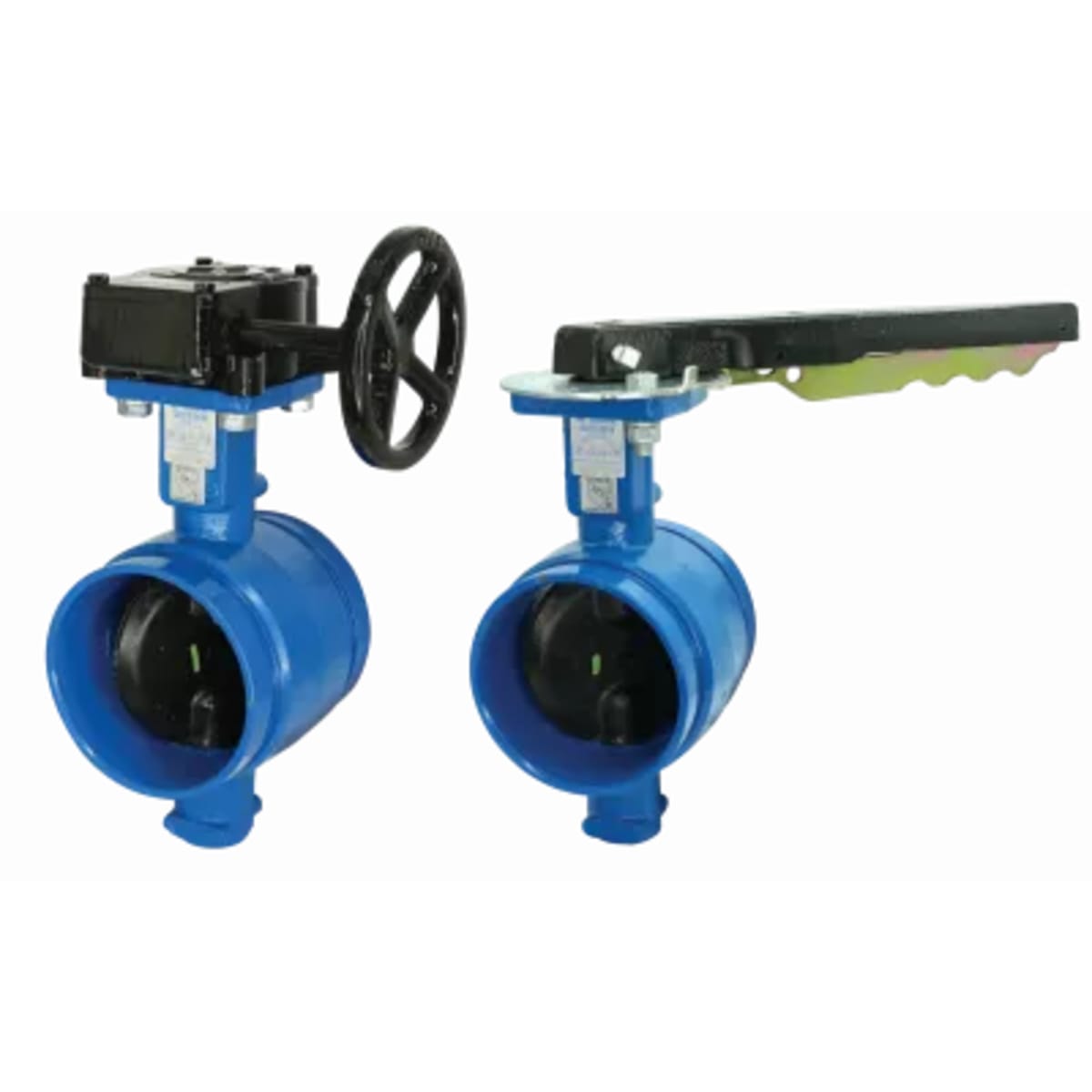

The Gruvlok GVLF-AE7721-3-300 is a three-inch butterfly valve designed for use in commercial grooved-end piping systems ranging from two to twelve inches. This valve features a spherical bore design that maintains a constant disc-to-seat loading for a reliable seal, regardless of the valve's position.

• Ideal for dead-end service with a pressure rating of up to 300 psi.
• Designed to ensure a bubble-tight seal from full vacuum to maximum pressure.
• Made with high-strength, corrosion-resistant stainless steel for durability.

Product Highlights

The Series 7700 valve is created with contractors in mind, featuring a rugged one-piece body and an integral mounting base for actuation. Its design accommodates pipe insulation, making it user-friendly for installation and maintenance.

Product Information

Standard Information

• Manufacturer: Gruvlok
• Part Number: GVLF-AE7721-3-300

Technical Specifications

• Size: 3 inches
• Connection Type: GR x GR
• Pressure Rating: 300 psi
• Seal Type: Stem-to-disc connection with zero backlash
• Operating Torque: Low for increased valve life
• Mounting Base: Integral for gear operator or handle actuation
• Body Construction: One-piece casting
• Unique Feature: Silicone-free option available on request
