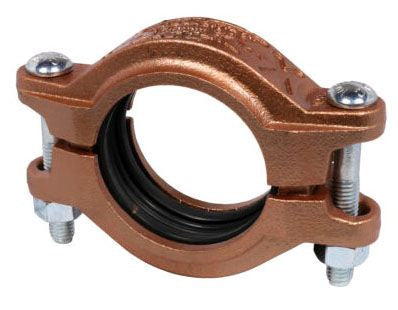

Gruvlok 0390012210 SlideLOK Coupling 6 Inch

Product Description

The Gruvlok SlideLOK Coupling with MPN 0390012210 is a high-performance coupling fitting designed for rigid joints in plumbing applications. This six-inch fitting offers quick and easy installation, ensuring a reliable connection.

• Manufactured from durable ductile iron.
• Pressure rating of 300 PSI for robust performance.
• Lead-free design suitable for potable water systems.

Product Highlights

This coupling is engineered to provide a secure connection while minimizing installation time. It features a patented gasket design that offers four separate sealing surfaces for enhanced leak protection.

Product Information

Standard Information

• Brand: Gruvlok
• MPN: 0390012210

Technical Specifications

• Type: Rigid, Hex Nut, Straight
• Size A: 6 Inch
• Size B: 6 Inch
• End Connection: CTS x CTS
• Material: Ductile Iron
• Material Specification: ASTM A536 Grade 65-45-12
• Finish: Copper Painted
• Pressure Rating: 300 PSI
• Temperature Rating: -40 to 250 Degrees F
• Gasket Supplied: Yes
• Gasket Details: 2 to 8 Inch Grade EP Copper ASTM D2000 EPDM
• Application: Copper Tube, Rigid Joint Connection
• Applicable Standard: NSF/ANSI 61, IAPMO, UPC
• Lead-Free: Yes
• Outer Diameter: 6.125 Inch
• Range of Pipe End Separation: 0 to 0.13 Inch
• Maximum End Load: 8839 Pound
• Specified Bolt Torque: 100 to 130 Foot-Pound
• Includes: (2) 5/8 Inch Diameter x 3-1/2 Inch Length SAE J429 Zinc Electroplated Bolt, ASTM A563 Zinc Electroplated Hex Nut
