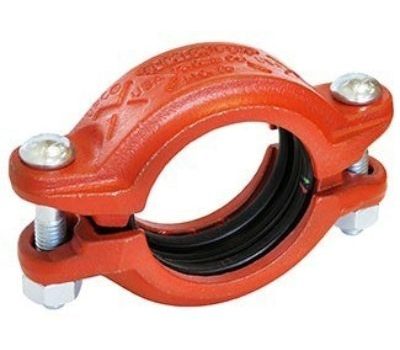

GRUVLOK 0390010106 SlideLok 6 in. Coupling

Product Description

The GRUVLOK coupling with MPN 0390010106 is a SlideLok 6 inch rigid coupling designed for efficient installation. This coupling reduces assembly time with its slide action feature, making it straightforward to use. It includes a patented gasket that ensures four sealing surfaces for enhanced protection against leaks.

• Designed for use with roll groove or cut groove steel pipe
• Maximum working pressure of 750 PSI
• Compatible with Gruvlok grooved-end fittings and valves

Product Highlights

The SlideLok coupling allows for reliable connections, adhering to ASME B31 pipe codes, which is essential for safe pipe installation.

Product Information

Standard Information

• Brand: GRUVLOK
• Make: GRUVLOK (ANVIL INTRNL)

Technical Specifications

• Max Working Pressure: 750 PSI
• Material: Ductile iron conforming to ASTM A536, Grade 65-45-12
• Gasket: EPDM Grade EP, -40 to 250 degrees F
• Coating: Orange rust inhibiting paint
• Bolts: SAE J429, grade 5, zinc electro-plated
• Nuts: ASTM A563, grade A, zinc electro-plated
