Product Description

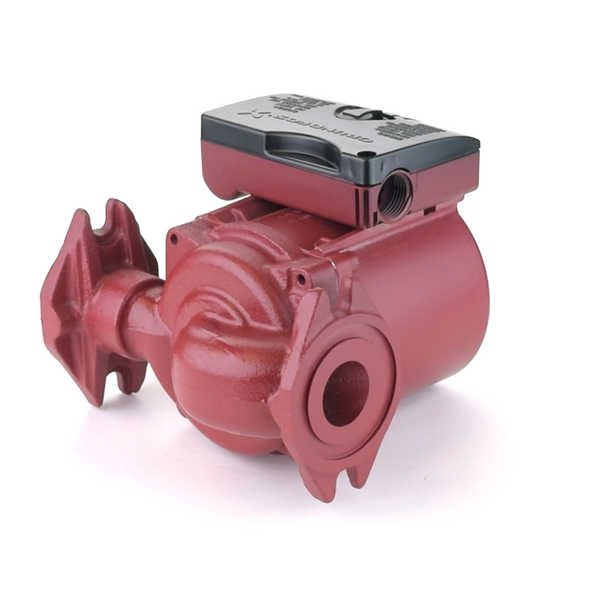

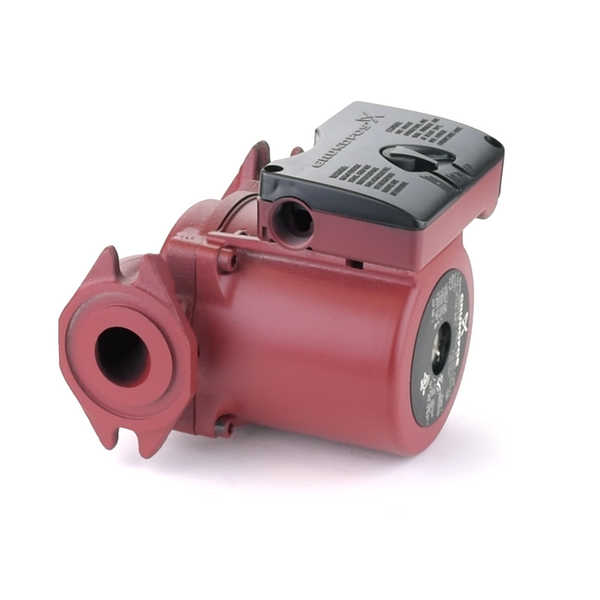

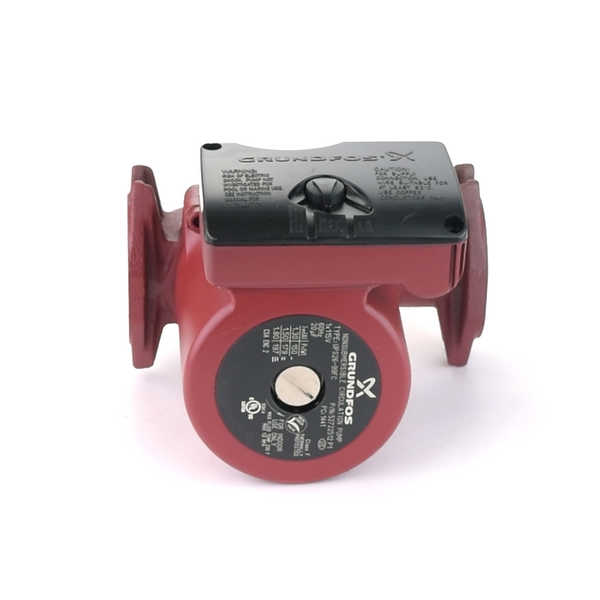

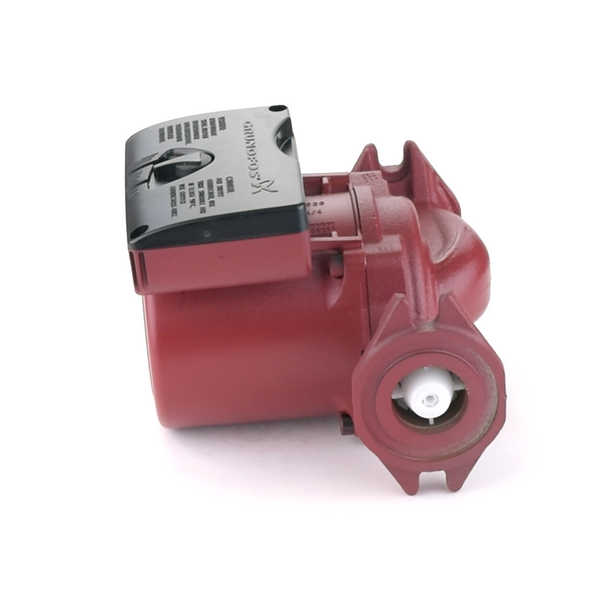

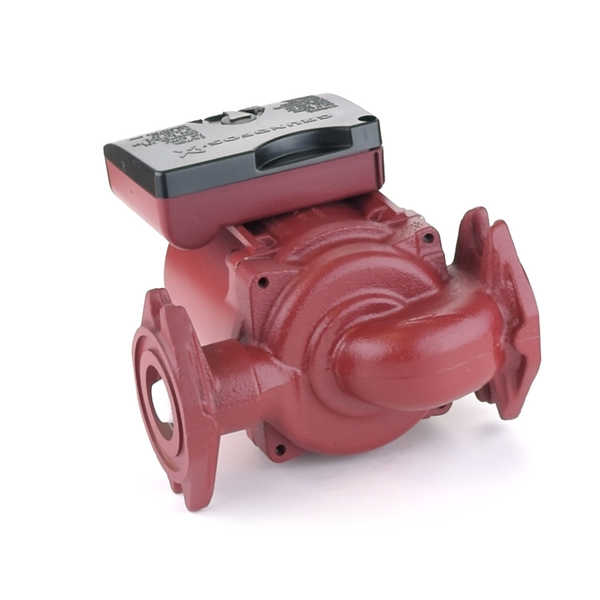

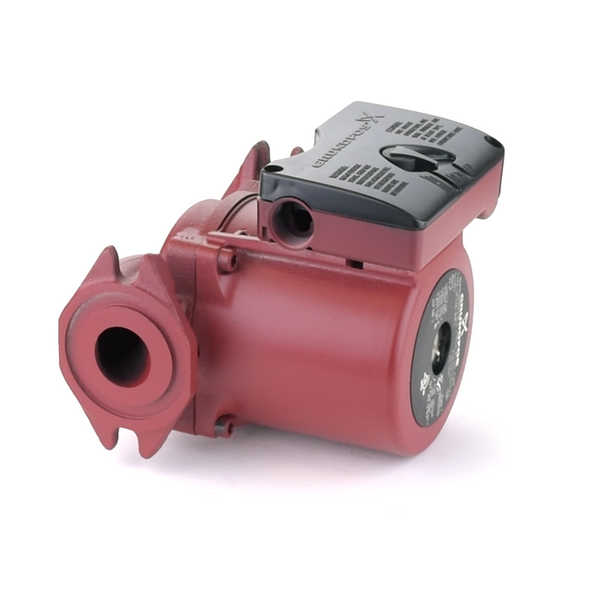

The GRUNDFOS UPS26-99FC 115V is a three-speed circulator pump designed for heating and air-conditioning systems, including central and district heating. This 1/6 HP cast iron pump provides reliable and maintenance-free operation. It features a built-in flow check, eliminating the need for a separate in-line valve, and automatic thermal protection for motor safety. Suitable for closed-loop systems with medium to high flow rates and pressure drops, it supports various heating applications.
- Three-speed circulator pump for versatile operation in heating and air-conditioning systems.
- Provides reliable and maintenance-free performance for central and district heating.
- Features a built-in flow check and internal automatic thermal protection for motor safety.
Product Highlights
Versatile 1/6 HP cast iron circulator pump with three speeds, ideal for various heating applications and closed-loop systems.
Product Information
Standard Information
-
Brand: GRUNDFOS
-
Manufacturer Part Number: UPS26-99FC 115V
-
Country of Origin: US
Technical Specifications
-
Number of Speeds: 3
-
Rated Flow: 17.7 US gpm
-
Max Flow: 33 US gpm
-
Flow Range: 0-33 GPM
-
Rated Head: 16.46 ft
-
Max Head: 28.87 ft
-
Head Range: 0-29 ft
-
Certifications: CUL, UL, CSA
-
Built-in Valves: Yes
-
Housing Material: Cast Iron
-
Impeller Material: Composite (PES+30% GF)
-
Ambient Temperature Range: 35.6 - 104 °F
-
Max Operating Pressure: 145.04 psi
-
Connection Type: 2-Bolt Flange
-
Compatible Connection Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2"
-
Connection Pressure Rating: PN 10
-
Terminal Box Position: 9H
-
Pumped Liquid: Water
-
Liquid Temperature Range: 35.6 - 230 °F
-
Power Input Speed 1: 0.2012 HP
-
Power Input Speed 2: 179 W
-
Power Input Speed 3: 197 W
-
Max Power Input: 197 W
-
Frequency: 60 Hz
-
Rated Voltage: 115 V
-
Current Speed 1: 1.3 A
-
Current Speed 2: 1.5 A
-
Current Speed 3: 1.8 A
-
Capacitor Size Run: 20 µF/180 V
-
Number of Poles: 2
-
Insulation Class: F
-
Thermal Protection: Internal
-
Mounting Type: In-Line
-
Application: Heating
-
Horsepower: 1/6 HP
-
Phase: 1
-
RPM: 3380
