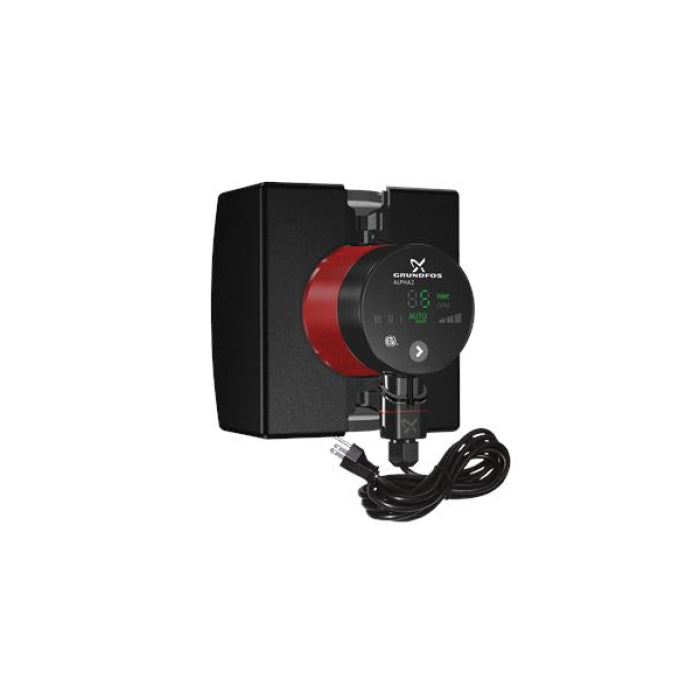

Grundfos 99163972 Alpha 2 15-55 SF/LC In-Line Circulator Pump 115 VAC

Product Description

The Grundfos Alpha 2 circulator pump with MPN 99163972 is designed for residential heating systems. This in-line pump operates efficiently at a voltage of one hundred fifteen VAC and features a one inch inlet and outlet. It provides reliable performance even in challenging operational environments.

• Energy-efficient ECM motor
• Automatic setting adjustments to reduce energy consumption
• Incorporates an integrated check valve for effective operation

Product Highlights

This circulator pump is ideal for heating systems requiring consistent performance. Its AUTOADAPT feature adjusts settings automatically to help achieve an optimal operation.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 99163972

Technical Specifications

• Power Rating: 0.0067 to 0.06 hp
• Maximum Head: 18.05 ft
• Material: Stainless Steel
• Inlet Size: 1 in
• Outlet Size: 1 in
• Voltage Rating: 115 VAC
• Amperage Rating: 0.1 to 0.65 A
• Frequency Rating: 60 Hz
• Temperature Rating: 32 to 104 deg F Ambient
• Dimensions: 6.5 in L x 4 in W x 6.5 in H
• Bearing Type: Radial
• Enclosure Type: IP42
• Phase: 1 ph
• Impeller Type: Composite
• Maximum Pressure: 145 psi
