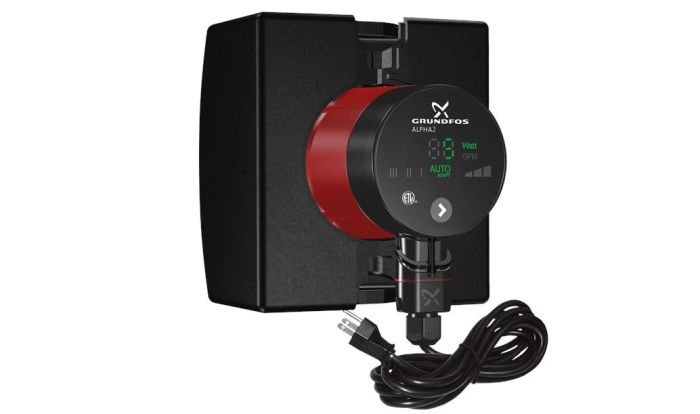

Grundfos 99163906 ALPHA2 15-55F/LC In-Line Circulator Pump

Product Description

The Grundfos ALPHA2 15-55F/LC In-Line Circulator Pump, MPN 99163906, offers efficient heating solutions for residential and commercial applications. Designed for reliability, this pump adapts to varying demand while minimizing energy use. The permanent magnet motor reduces consumption by up to 50%, making it a cost-effective option.

• Seven speed settings for customizable performance.
• Includes an AUTOADAPT feature for optimal energy efficiency.
• Compact and easy to install with versatile connections.

Product Highlights

The ALPHA2 ensures consistent water flow while efficiently managing energy usage, reducing both operational costs and environmental impact.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 99163906

Technical Specifications

• Dimensions: 6.5 inches L x 4 inches W x 6.5 inches H
• Inlet Size: 1.5 inches
• Outlet Size: 1.5 inches
• Maximum Head: 18.05 feet
• Power Rating: 0.0067 to 0.06 horsepower
• Voltage Rating: 115 VAC
• Amperage Rating: 0.1 to 0.65 A
• Maximum Pressure: 145 psi
• Temperature Rating: 32 to 104 degrees F Ambient
• Material: Cast Iron
• Enclosure Type: IP42
• Type: In-Line
• Series: Alpha 2
• Frequency Rating: 60 Hz
• Bearing Type: Radial
• Impeller Type: Composite
