Grundfos 98996436 UPZCV-3 3 Zone Valve Control

Product Description

The Grundfos UPZCV-3 3 Zone Valve Control, with MPN 98996436, is designed for single and multiple zone hydronic heating systems. This unit efficiently manages zone pumps and low voltage zone valves. It's expandable, allowing for versatile applications in various jobs. The unit controls boiler pumps, domestic hot water pumps, and system pump assignments from a single control interface.

• Expandable to manage multiple zones.
• Easy wiring with side-mounted terminals.
• LED indicators for operational status.

Product Highlights

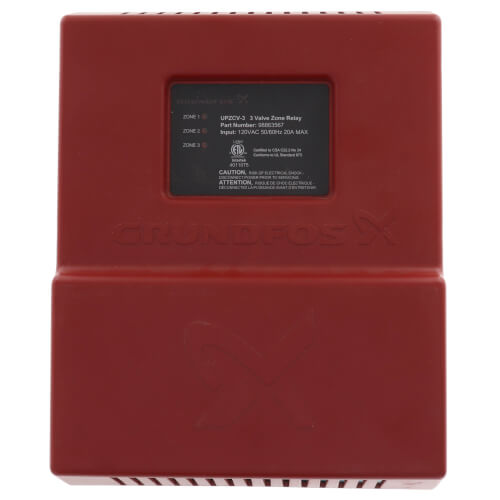

This valve control simplifies installation and operation while providing versatility. It features front-facing LED indicators for easy monitoring and side-mounted connections for straightforward wiring.

Product Information

Standard Information

• Zones Controlled: 3
• Product Type: Valve Control

Technical Specifications

• Input Power: 120 VAC

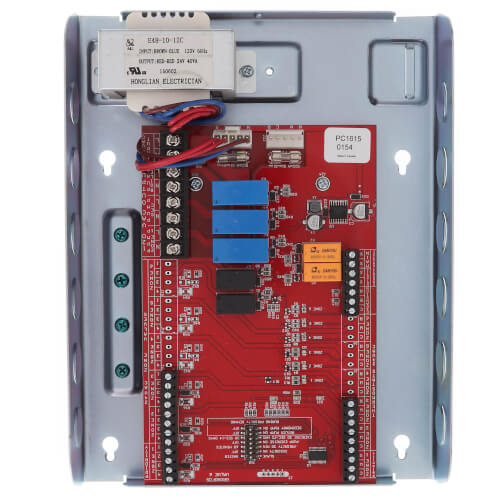

• Transformer Voltage: 24 VAC, 40 VA, Class 2
• Thermostat Output: 0.375, 0.5, 0.75 A
• Maximum Motor Rating: 5 A per zone
• Combined Load Rating: 20 A output at 120 VAC
• Storage Temperature Range: 50-100 °F
• Operating Temperature Range: 0-100 °F
• Maximum Operating Humidity: 90% RH
• Number of Knockouts: 12
• Knockout Size: 0.0875 in
• Approvals: CSA 22.2 No. 24 / UL Standard 873
• Cover Material: ABS-Fire rated

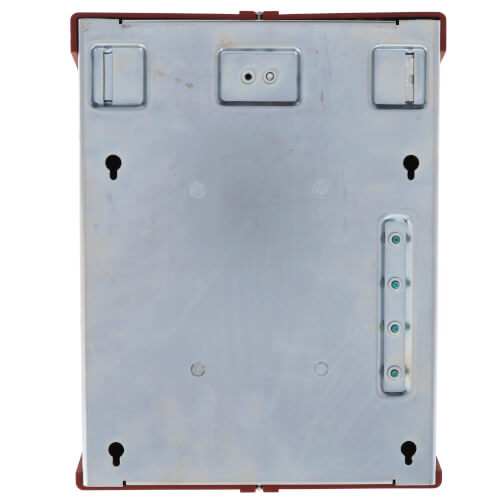

• Base Material: Galvanized steel
• Relay Type: Sealed
• Terminal Block Type: PA66
• Front Display Lights: LED
