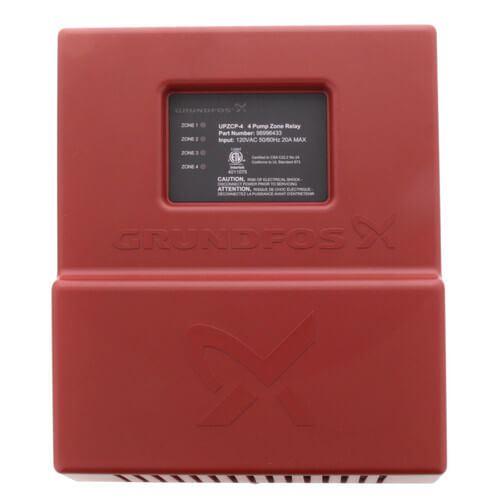

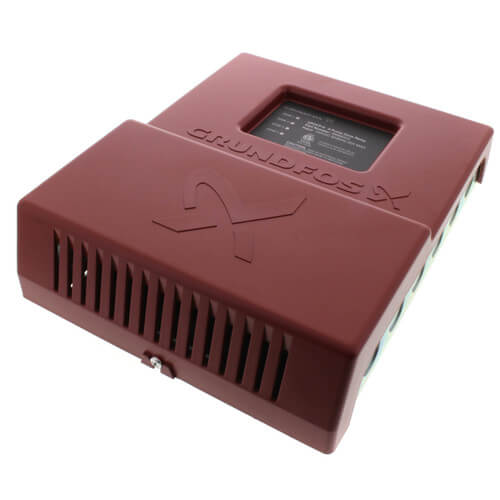

Grundfos 98996433 UPZCP-4 4 Zone Pump Control

Product Description

The Grundfos UPZCP-4 4 Zone Pump Control is designed for hydronic heating systems. This control can manage single or multiple zones, whether using zone pumps or low voltage zone valves. It supports various types of systems, allowing for expansion to meet larger job requirements.

• Easy installation and wiring
• Front-facing LED indicators
• Expandable for multi-zone applications

Product Highlights

The UPZCP-4 offers versatile options for controlling hydronic heating systems. Its side-mounted terminals make connections straightforward, and the LED indicators keep operators informed of the system's status.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98996433

Technical Specifications

• Input power 60 Hz: 120 VAC
• Transformer voltage: 24 VAC, 40 VA, Class 2
• Thermostat output [A]: 0.375, 0.5, 0.75
• Maximum single phase motor rating per zone [A]: 5
• Maximum combined load rating at 120 VAC [A]: 20
• Temperature range (storage) [°F (°C)]: 50-100 (10-38)
• Maximum operating temperature range [°F (°C)]: 0-100 (-18-38)
• Maximum operating humidity range % RH: 90%
• Number of knockouts: 12
• Size of knockouts [in (mm)]: 0.0875 (22)
• Approvals: CSA 22.2 No. 24 / UL Standard 873

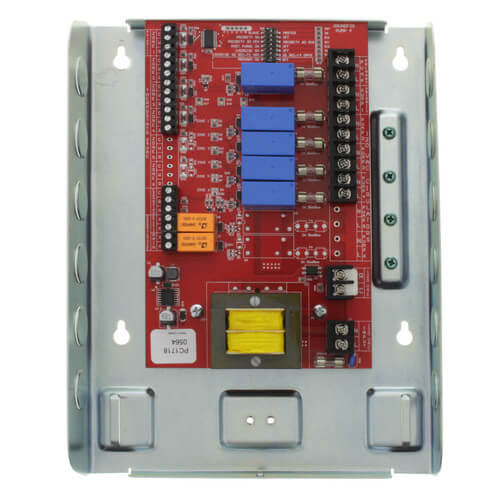

• Relay type: Sealed
• Cover panel: ABS-Fire rated

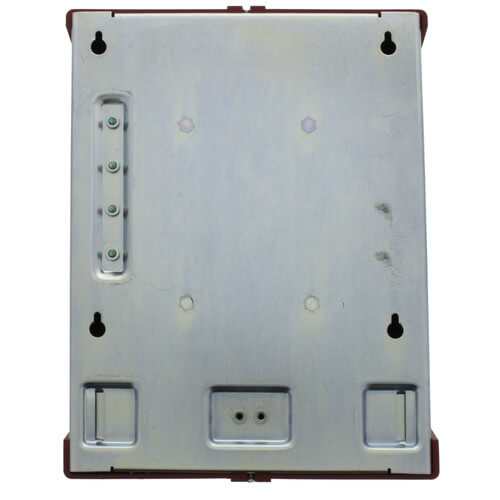

• Base material: Galvanized steel
• Terminal block (side mounted): PA66
• Front display lights: LED
