Thermostat for Grindmaster L029AL

Product Description

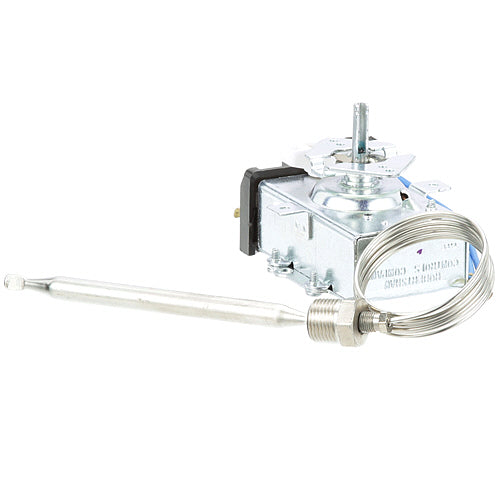

This item for Grindmaster L029AL is a thermostat designed for D1 and D18 applications. It operates between one hundred degrees Fahrenheit and two hundred fifty degrees Fahrenheit with a durable bulb measuring three-eighths of an inch by four and a half inches.

• High current capacity for demanding applications.
• Compatible with various pilot lights and bezels.
• Useful in air conditioning operations with four terminal connections.

Product Highlights

This thermostat features a robust design suitable for commercial use. It includes a front mount with ears and a three-eighths inch MPT stuff box.

Product Information

Standard Information

• Type: D1/D18
• Temperature Range: 100-250°F

Technical Specifications

• Resistance Load: 10 Amp 480V per pole
• Max Load: 21 Amp 480V 2 poles
• Full Load Amps: 7.2 Full Load Amp 120-277V
• LRA: 42 LRA 120-277V
• Pilot Duty: 250VA 120-277V
• Bulb Size: 3/8 x 4-1/2
• Mounting Type: Front ears
• Compatible Pilot Light: #38-1068
