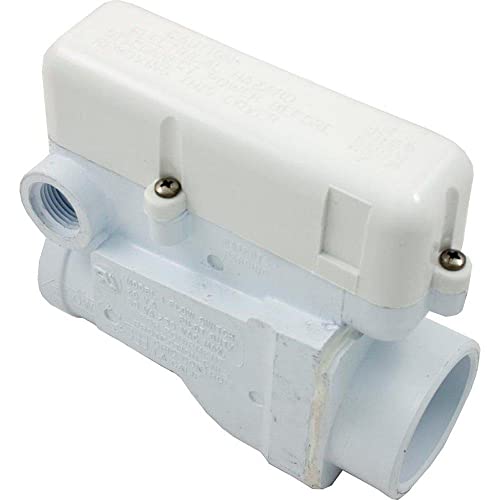

Grid Controls 57-F4-1000-WHT Flow Switch 1Amp 1-1/2 Slip PVC

Product Description

Grid Controls model 57-F4-1000-WHT is a reliable flow switch designed for use in various applications. This flow switch features a 1-1/2 inch PVC slip connection and is rated for one amp of current. It requires a minimum flow rate of fourteen gallons per minute for optimal operation. It is designed for horizontal mounting.

• 1-1/2 inch PVC slip connection
• Rated for one amp, 14 GPM minimum flow required
• Mounts in horizontal position only

Product Highlights

This model is effective for controlling liquid flow in systems where monitoring is crucial.

Product Information

Standard Information

• Product Type: Flow Switch
• Manufacturer: Grid Controls

Technical Specifications

• Model Number: 57-F4-1000-WHT
• Connection Size: 1-1/2 inch
• Flow Rate: 2 GPM (on), 0.8 GPM (off)
• Maximum Voltage: 300V
• Maximum Load: 50VA (Watts), 20VA Pilot Duty
• Stainless Steel Pin
• Set Point: 2 GPM OFF, 0.8 GPM Non-Adjustable
• Uses: Ramco Evolution and Crystal Pure Systems
