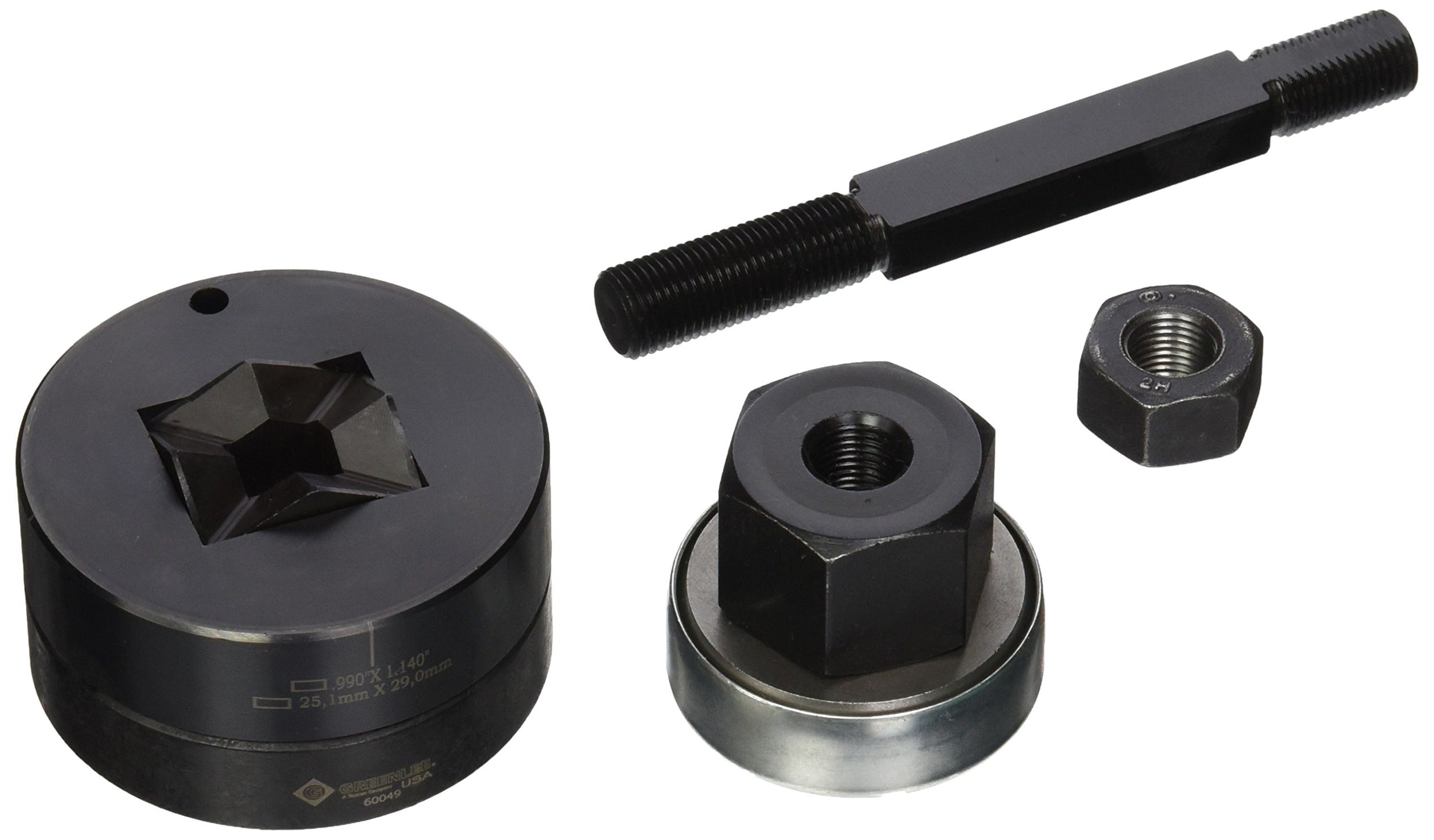

Greenlee 60047G Rectangular Punch Unit 0.990 X 1.14 Inch

Product Description

The GREENLEE 60047G is a 14-gauge rectangular punch unit designed to cut clean 0.990 x 1.14 inch holes in sheet metal and enclosure panels. Built from alloy steel, this punch unit delivers the structural rigidity needed for precise, repeatable knockout work in electrical boxes, control panels, and similar enclosures. It is compatible with both manual and hydraulic drivers, giving installers flexibility across job sites where power availability or access conditions vary. Electricians and panel shop technicians rely on this type of punch for accurate, burr-minimal openings without distorting surrounding material.

This punch unit is suited for residential and commercial electrical work where rectangular knockouts are required in 14-gauge sheet metal. Typical applications include creating openings in electrical enclosures, junction boxes, and control panel housings. The 0.990 x 1.14 inch cut profile accommodates standard rectangular fittings and connectors that require a precise hole geometry. It is designed for use with compatible manual draw-stud drivers or hydraulic knockout systems.

Key Features

• Cuts 0.990 x 1.14 inch rectangular holes in 14-gauge sheet metal
• Alloy steel construction for durability and consistent cutting performance
• Compatible with both manual and hydraulic driver systems
• Single-piece punch unit sold as a quantity of one
• Produces clean, accurate knockouts with minimal panel distortion

Compatibility

Designed for use with manual or hydraulic drivers compatible with the GREENLEE knockout punch system. Intended for 14-gauge sheet metal applications.

Installation Notes

This punch unit is typically installed by licensed electricians performing enclosure fabrication or field modification work. De-energize all equipment and follow applicable NFPA 70 (NEC) lockout/tagout procedures before cutting into any enclosure. Ensure the correct draw stud and die set are matched to this punch unit before applying driver force. Inspect the punch edge before each use and replace if chipping or deformation is present.
