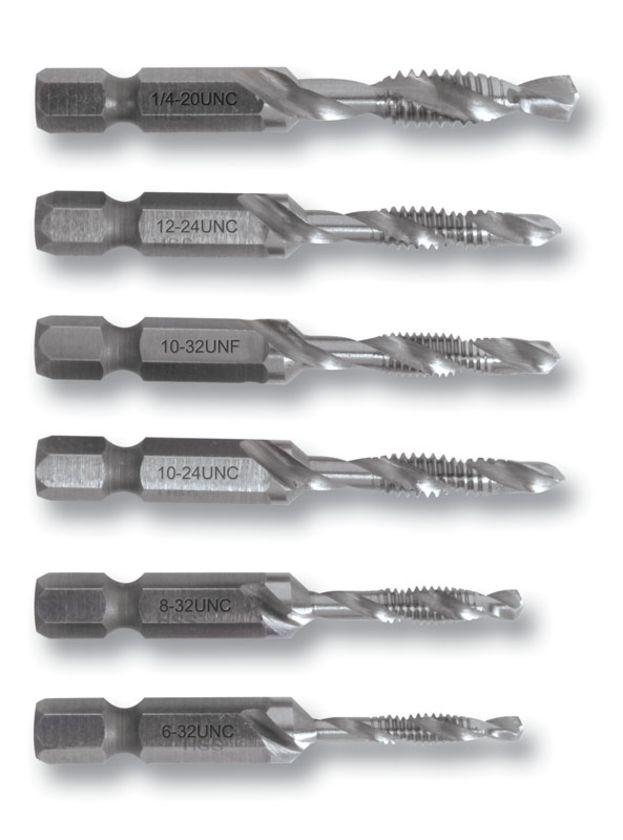

GREENLEE 17613 Split Point Tap Drill Bit 17613

Product Description

The GREENLEE 17613 is a split point tap drill bit that simplifies drilling and tapping into metal. Made from high-speed steel, it features a one-quarter inch hex shank for easy connectivity to drill chucks. This bit is capable of tapping into materials up to ten gauge metal, making it effective for use on mild steel, copper, brass, and aluminum.

• Performs drilling, tapping, deburring, and countersinking in one operation.
• Features a back taper to prevent thread damage from over-drilling.
• Designed for use with mild steel, copper, brass, and aluminum.

Product Highlights

This drill bit is engineered for efficiency, combining multiple functions into one tool. It saves time in tasks that require drilling and tapping, which is valuable for trade professionals.

Product Information

Standard Information

• Brand: GREENLEE
• Manufacturer Part Number: 17613

Technical Specifications

• Material: High-Speed Steel
• Point Type: Split Point
• Shank Type: Hex
• Shank Diameter: 1/4 inch
• Thread Size: #10-24
• Thread Per Inch: 24
• Thread Type: NC
• Overall Length: 2-1/4 inches
• Material Thickness: Up to 10 GA
• Drill Size: NO 10
• Standards: ARRA Compliant, RoHS Compliant
• Measurement System: Imperial
