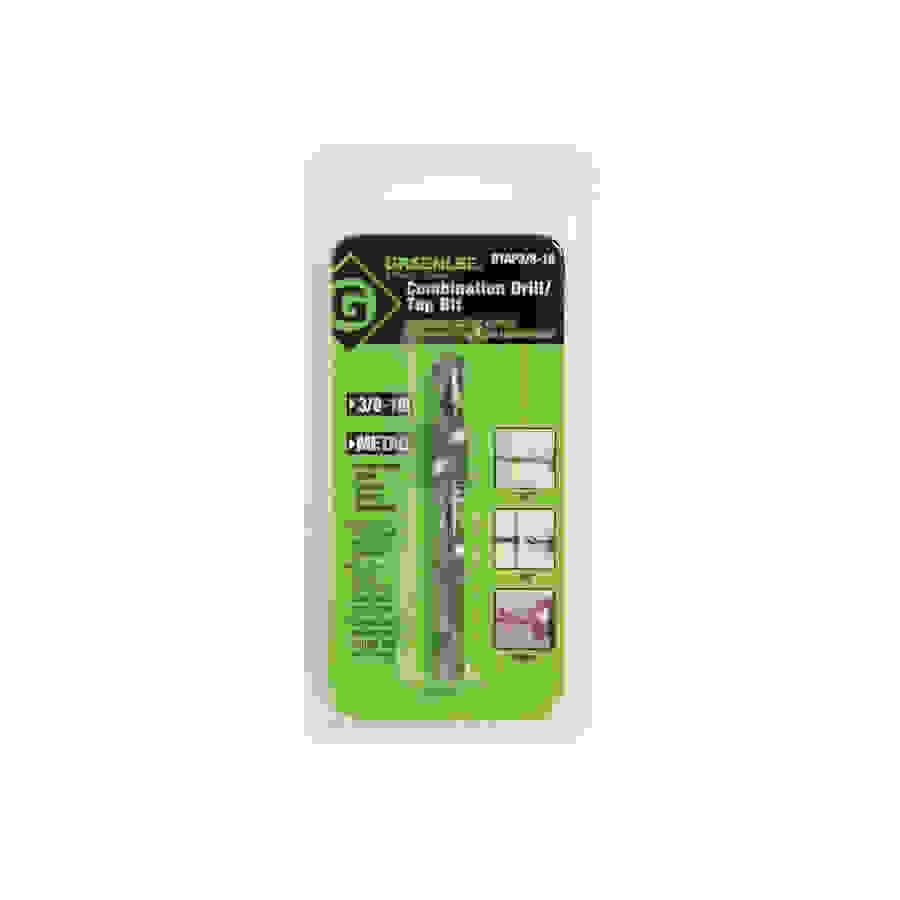

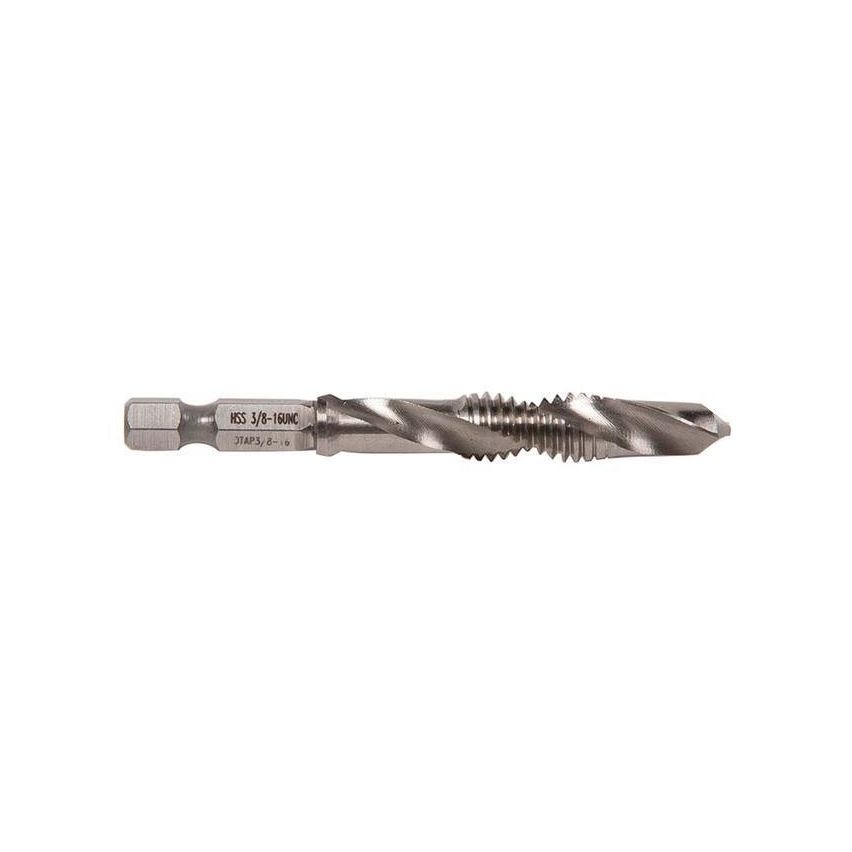

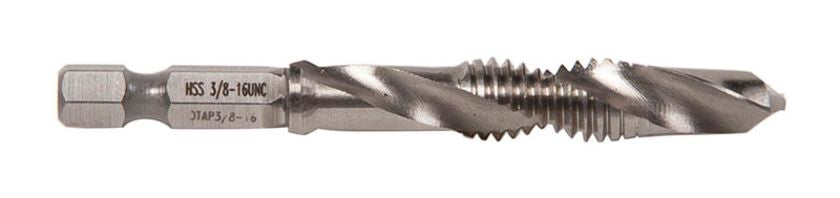

Greenlee 11628 Split Point Tap Drill Bit 3/8-16 Thread

Product Description

The Greenlee 11628 is a split point tap drill bit designed for efficient drilling and tapping in one step. It is appropriate for use on materials such as mild steel, copper, brass, and aluminum up to ten gauge thickness. The high-speed steel construction ensures durability and longevity.

• Supports drilling, tapping, and deburring in one action.
• Incorporates a split point design for precision.
• Compatible with power drills and features a hex shank for secure hold.

Product Highlights

This drill bit allows for quick and accurate hole creation with minimal effort.

Product Information

Standard Information

• Brand: Greenlee
• Manufacturer Part Number: 11628

Technical Specifications

• Material: High Speed Steel
• Drill Size: 3/8 inches
• Thread Size: 3/8-16
• Thread Per Inch: 16
• Point Type: Split Point With Web Thinning
• Shank Type: Hex
• Shank Diameter: 3/8 inches
• Overall Length: 3-1/4 inches
• Material Thickness: Up to 10 GA
• Material Type: Mild Steel, Copper, Brass, Aluminum
• Standards: ARRA Compliant, RoHS Compliant
